Features
·1550×300×1000 mm flap barrier chassis with a bold and modern minimalist style. Supports personalized logo customization.
·Built with an internal steel frame and a stainless steel body. Supports powder coating, electroplating, anodizing, and custom color options.
·Powered by a patented flap barrier mechanism with optional Brushless DC or Servo motor drives, achieving an ultra-long lifespan of 15 million operational cycles.
·Recommended standard lane width up to 550 mm for safe and rapid throughput.
·Effectively prevents tailgating and unauthorized lingering. Optional LiDAR tracking solution available.
·Pre-configured with rich expansion ports, RS232, RS485, and TCP/IP serial interfaces for seamless integration with QR codes, RFID cards, face recognition, and palmprint biometrics.
·Ideal for airports, metro stations, public parks, gyms, libraries, office buildings, residential communities, scenic spots, transit hubs, and entertainment venues.
·Easily configure single-direction, bi-directional, or free passage modes via onboard motherboard controls.
·Triggers instant audio-visual alarms for illegal intrusion or reverse entry with surveillance linkage. Excellent anti-electromagnetic interference capability.
·Automatically retracts wings/unlocks during power outages (direction configurable) to ensure rapid emergency evacuation.
·Instantly stops closure upon sensing resistance. Automatically cancels access and relocks if passage is not completed within 10 seconds (adjustable).
·Real-time audio broadcasts for normal access prompts and abnormal security events (intrusion, tailgating, lingering).
·Motherboard supports automatic fault self-diagnosis, paired with intuitive LED directional indicators for simplified daily maintenance.

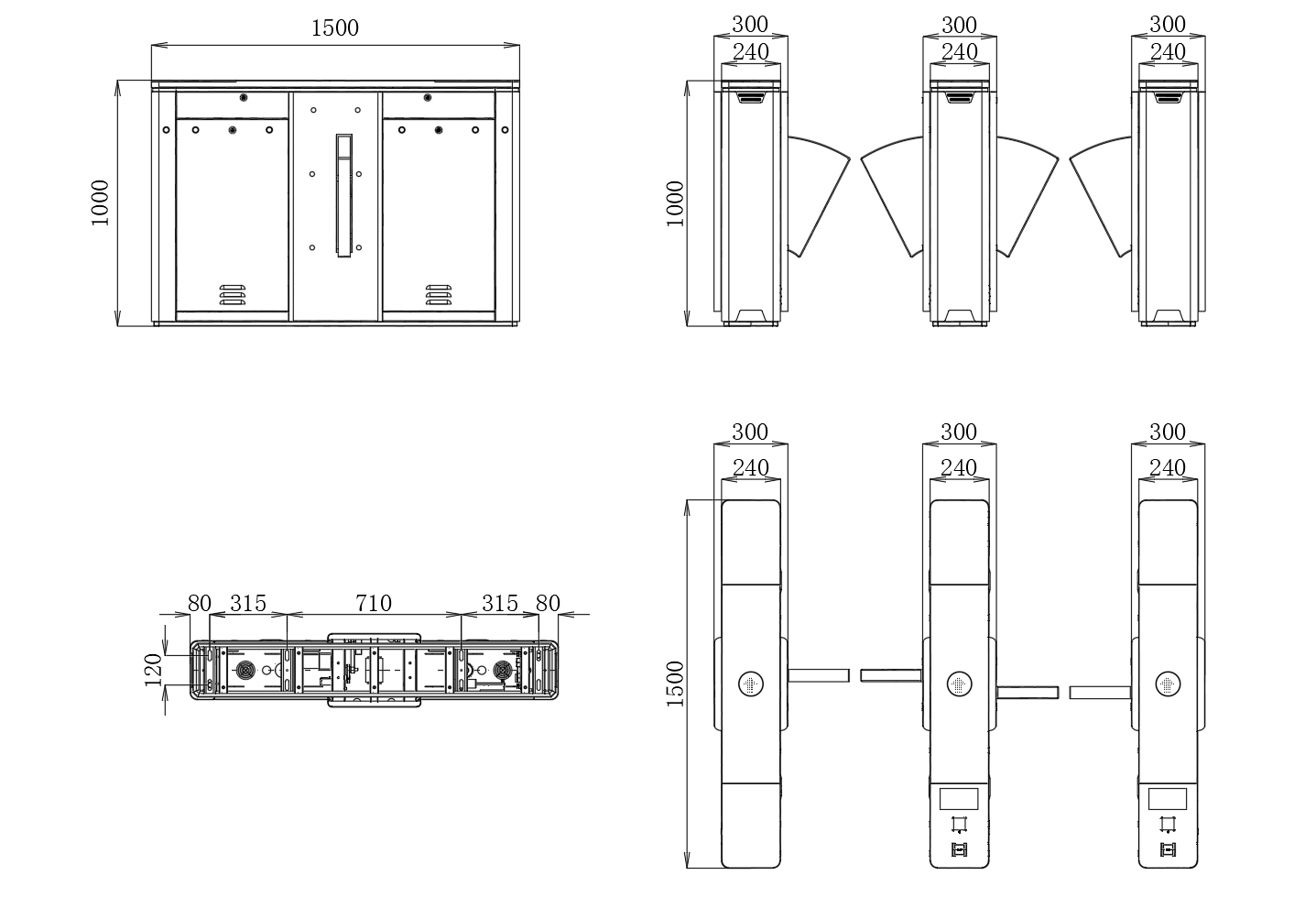

Size Drawing & Parameters
Integration
Certification
Video
Downloads
Relevant Cases
FAQ
How do I choose the right turnstile?
Start with the project security level, required passage width, expected user flow, indoor or outdoor environment and the identification method. Speed gates and flap barriers suit controlled pedestrian entrances, swing barriers can support wider passages, tripod turnstiles are compact and economical, and full-height turnstiles are intended for higher-security perimeter control.
Which identification methods can be integrated?
Depending on the selected model and project configuration, turnstiles can be paired with card readers, QR-code readers, face-recognition terminals and third-party access-control systems. Confirm the required reader type, mounting position, interface and control logic before finalizing the configuration.
Can the passage width be customized?
Passage width varies by turnstile type and model. Wider passages can be configured on suitable swing-barrier or sliding-gate solutions for luggage, accessibility or project-specific circulation needs. Confirm the required clear width before selecting the final model.
Can the gates be used outdoors?
Outdoor use depends on the selected model, enclosure design and site conditions. For exposed installations, confirm weather protection, drainage, power and cable protection, foundation requirements and any canopy or environmental protection needed for the project.
How are emergencies and power failures handled?
Emergency and power-failure behavior depends on the turnstile mechanism, controller and project configuration. The required fail-safe or release behavior should be confirmed during product selection and coordinated with the building access-control and emergency-evacuation plan.
Where can I download technical documents?
Open Support → Documents Download and select the relevant product series. Available document packs can include installation instructions, dimensional drawings and wiring diagrams. If a required document is not listed, contact support with the exact product model.
