Features

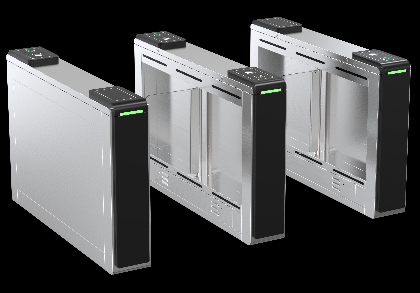

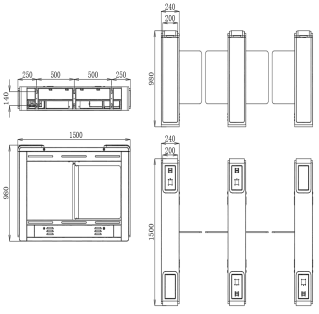

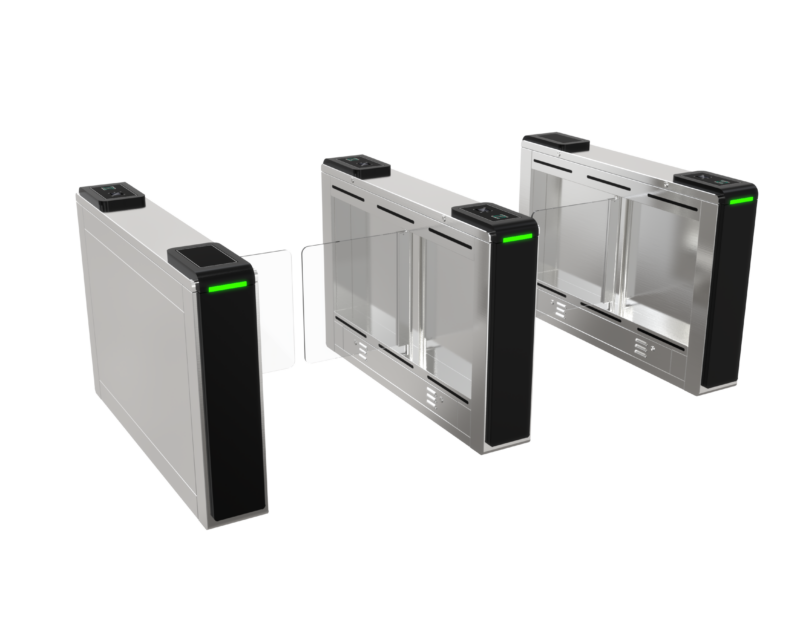

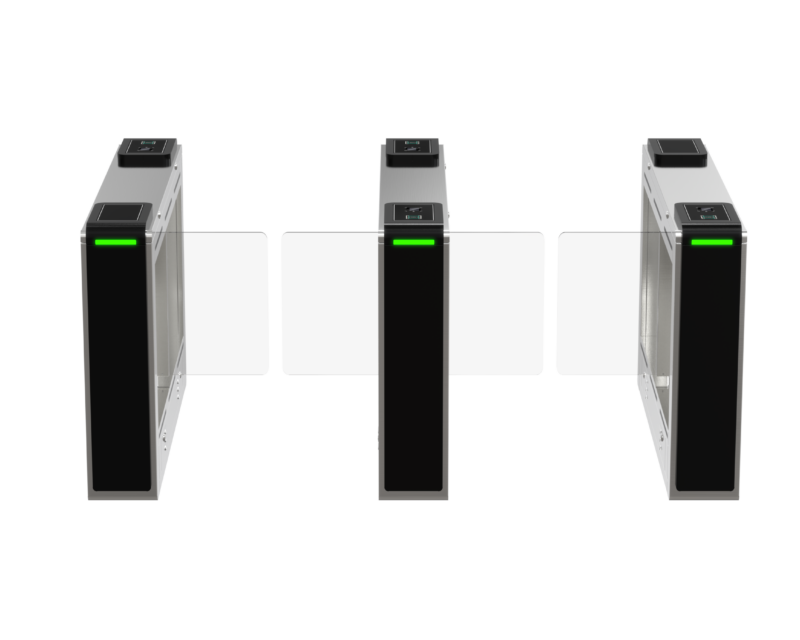

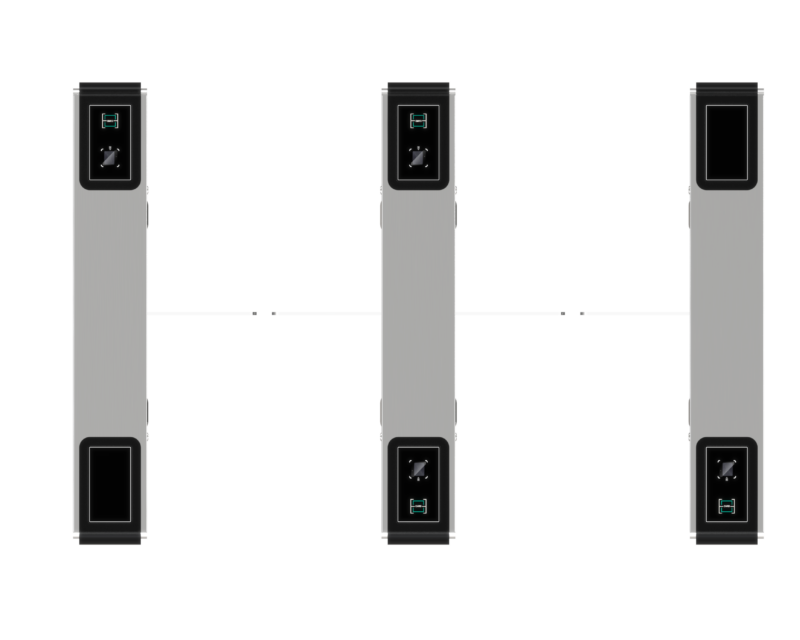

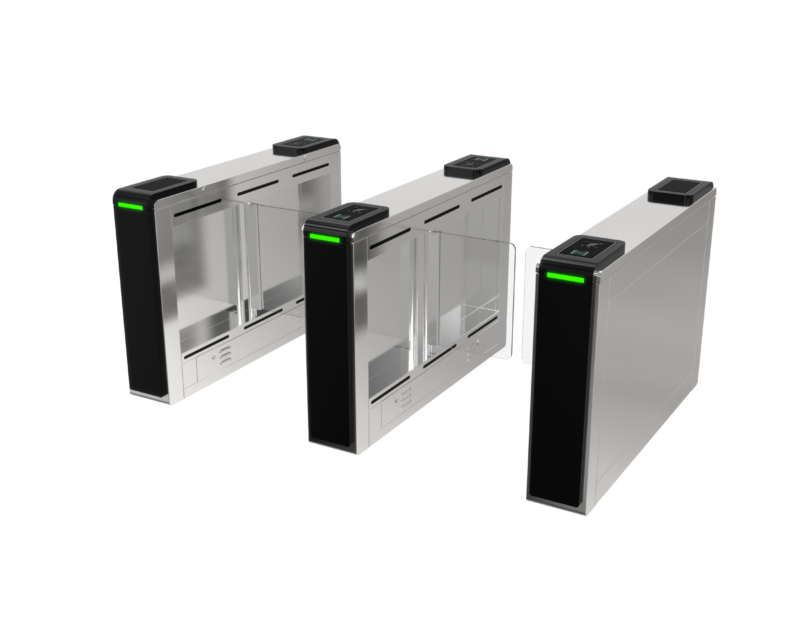

·1500×280×980 mm swing speed gate chassis with a sleek and modern minimalist aesthetic. Supports personalized logo customization.
·Built with an internal steel frame and a painted stainless steel body. Supports powder coating, electroplating, anodizing, and custom color options.

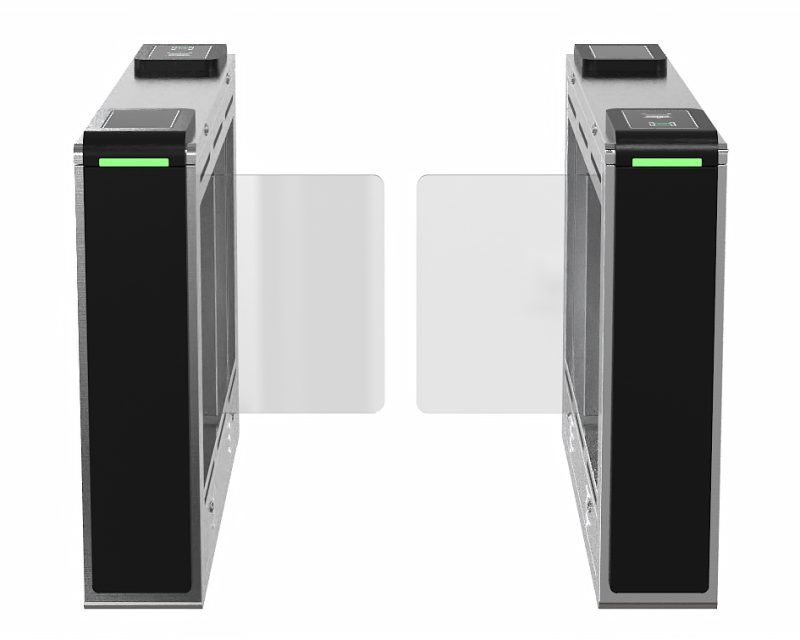

·Powered by a patented swing barrier mechanism with optional Brushless DC or Servo motor drives, achieving an ultra-long lifespan of 15 million operational cycles.
·Recommended wide-lane width up to 1150 mm for ADA compliance, wheelchair access, and heavy luggage passage.
·Effectively prevents tailgating and unauthorized lingering. Optional LiDAR tracking solution available.
·Pre-configured with rich expansion ports, RS232, RS485, and TCP/IP serial interfaces for seamless integration with QR codes, RFID cards, face recognition, and palmprint biometrics.

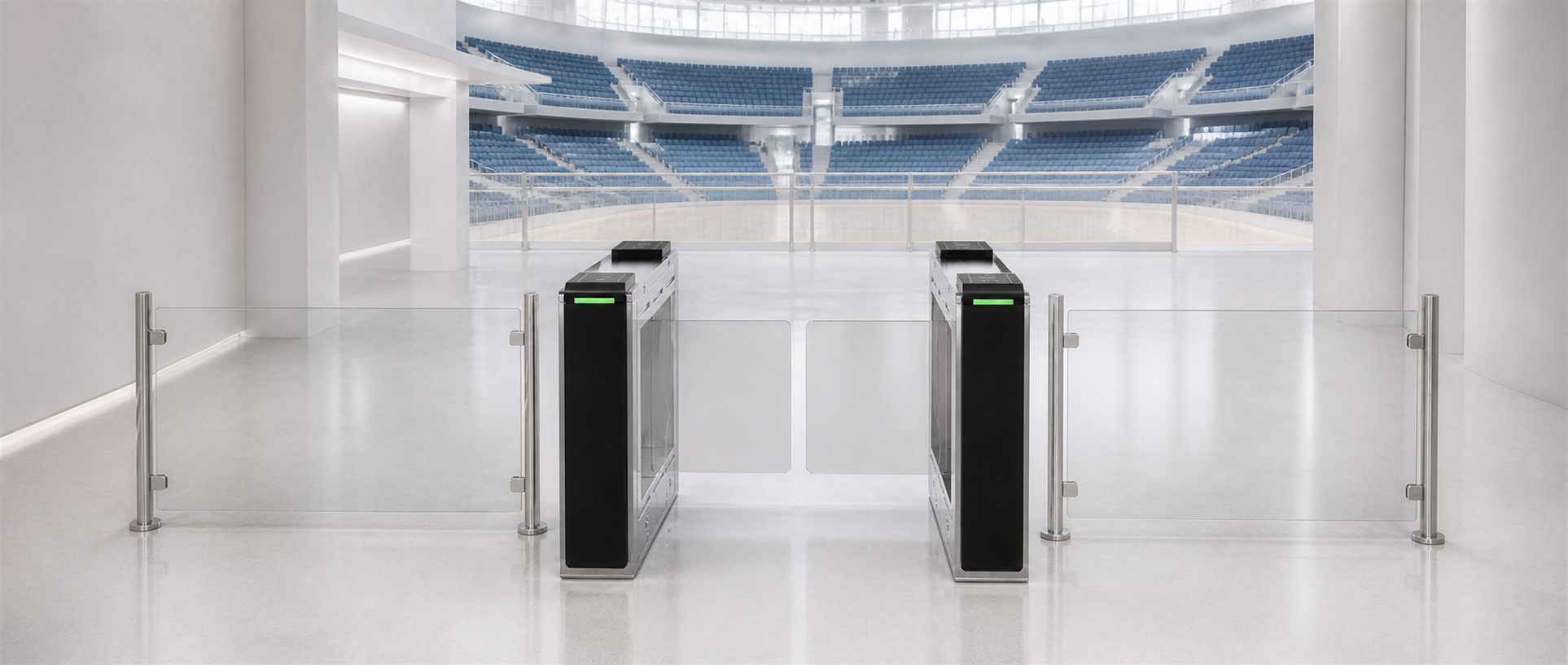

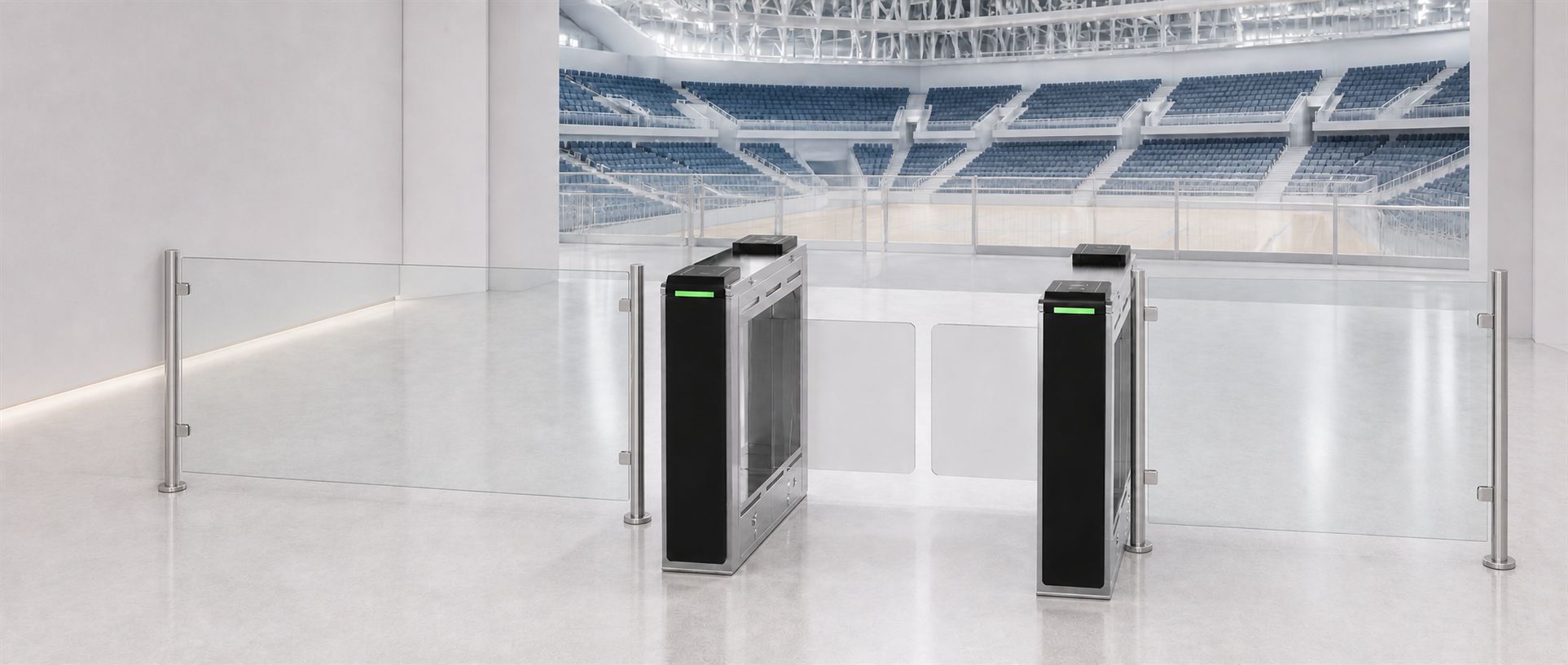

·Ideal for airports, metro stations, public parks, gyms, libraries, office buildings, residential communities, scenic spots, transit hubs, and entertainment venues.
·Easily configure single-direction, bi-directional, or free passage modes via onboard motherboard controls.
·Triggers instant audio-visual alarms for illegal intrusion or reverse entry with surveillance linkage. Excellent anti-electromagnetic interference capability.
·Automatically opens/unlocks during power outages (direction configurable) to ensure rapid emergency evacuation.
·Instantly stops closure upon sensing resistance. Automatically cancels access and relocks if passage is not completed within 10 seconds (adjustable).
·Real-time audio broadcasts for normal access prompts and abnormal security events (intrusion, tailgating, lingering).
·Motherboard supports automatic fault self-diagnosis, paired with intuitive LED directional indicators for simplified daily maintenance.
