Features
· 3000×200×1040 mm chassis carrying the signature VELAXIZ design aesthetic. Supports OEM/ODM custom
·Built with an internal steel frame and dual-tone painted stainless steel housing (optional aluminum alloy body). Supports powder coating, electroplating, anodizing, and custom finish colors.
·Equipped with the Shaft 70 speed gate mechanism with optional Brushless DC or Servo motor drives, delivering an industry-leading service life of 50 million operational cycles.
·Standard recommended lane width $\le$ 1000 mm, balancing spacious access with efficient throughput.
·Standard configuration includes 11 pairs of infrared sensors combined with 3D vision technology to effectively prevent unauthorized tailgating and room lingering.
·Pre-configured with rich expansion ports, RS232, RS485, and TCP/IP serial interfaces for seamless integration with QR codes, RFID cards, face recognition, and palmprint biometrics.
·Engineered for high-security environments, including airports, customs checkpoints, enterprise headquarters, military facilities, and other critical infrastructure.
·Easily configure single-direction, bi-directional, or free passage modes via onboard mainboard controls to meet diverse management needs.
·Triggers instant audio-visual alarms for illegal intrusion and reverse entry with surveillance linkage. Features strong resistance to electromagnetic interference.
·Automatically unlocks and opens during power outages (direction configurable) to ensure rapid emergency evacuation.
·Instantly halts movement upon sensing resistance. Automatically cancels access rights and relocks if passage is not completed within 10 seconds (adjustable).
·Real-time audio broadcasts for normal access prompts and automated alerts for abnormal security events (intrusion, tailgating, overtime lingering).
·Motherboard supports automated fault self-diagnosis and reason prompts, paired with intuitive LED directional indicators for simplified daily maintenance.

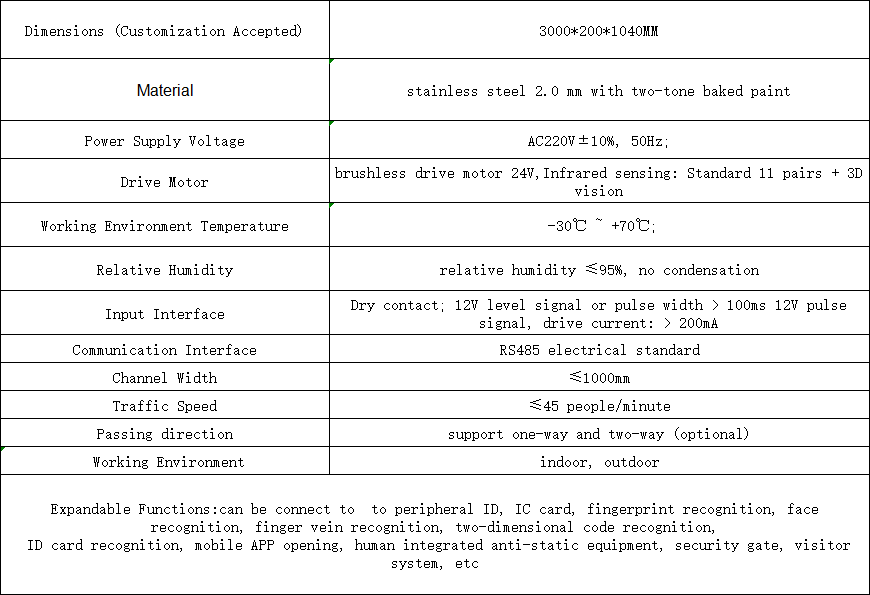

Size Drawing & Parameters
Certification
Video
Downloads
FAQ
How do I choose the right turnstile?
Start with the project security level, required passage width, expected user flow, indoor or outdoor environment and the identification method. Speed gates and flap barriers suit controlled pedestrian entrances, swing barriers can support wider passages, tripod turnstiles are compact and economical, and full-height turnstiles are intended for higher-security perimeter control.
Which identification methods can be integrated?
Depending on the selected model and project configuration, turnstiles can be paired with card readers, QR-code readers, face-recognition terminals and third-party access-control systems. Confirm the required reader type, mounting position, interface and control logic before finalizing the configuration.
Can the passage width be customized?
Passage width varies by turnstile type and model. Wider passages can be configured on suitable swing-barrier or sliding-gate solutions for luggage, accessibility or project-specific circulation needs. Confirm the required clear width before selecting the final model.
Can the gates be used outdoors?
Outdoor use depends on the selected model, enclosure design and site conditions. For exposed installations, confirm weather protection, drainage, power and cable protection, foundation requirements and any canopy or environmental protection needed for the project.
How are emergencies and power failures handled?
Emergency and power-failure behavior depends on the turnstile mechanism, controller and project configuration. The required fail-safe or release behavior should be confirmed during product selection and coordinated with the building access-control and emergency-evacuation plan.
Where can I download technical documents?
Open Support → Documents Download and select the relevant product series. Available document packs can include installation instructions, dimensional drawings and wiring diagrams. If a required document is not listed, contact support with the exact product model.
