VX.XS02 - VELAXIZ Turnstile Manufacturer

Features

·1400×166×1000 mm Supports OEM/ODM custom

·Built with an internal steel frame and an aluminum alloy (or optional stainless steel) chassis. Supports powder coating, electroplating, anodizing, and custom colors.

·Powered by a patented swing barrier mechanism with optional Brushless DC or Servo motors, delivering an ultra-long lifespan of 15 million cycles.

·Standard lane width of 600–900 mm, expandable up to 1500 mm for extra-wide access requirements.

·High-precision IR sensor array tracks movement to prevent tailgating and lingering. Optional LiDAR tracking available.

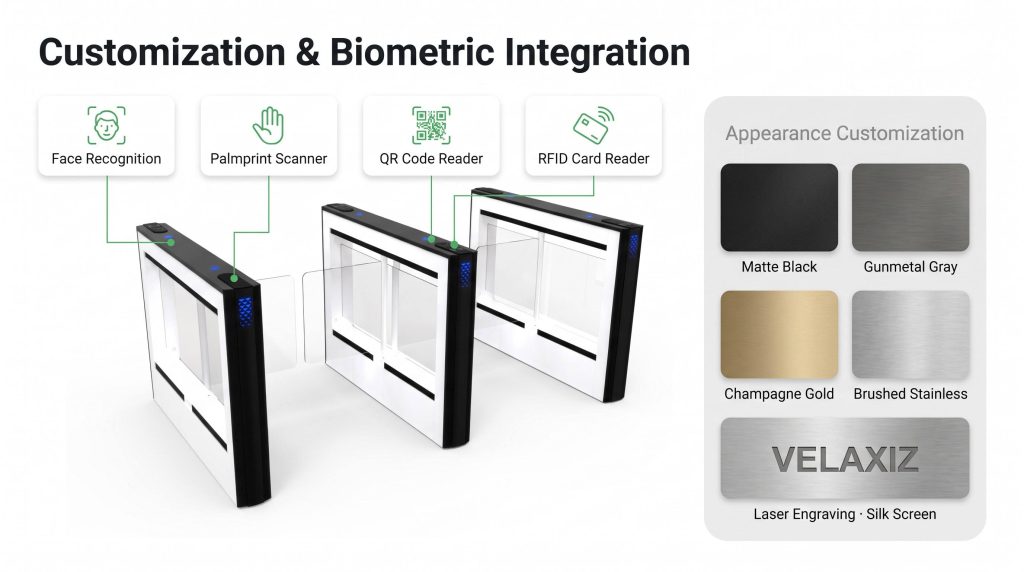

·Pre-configured with RS232, RS485, and TCP/IP ports to seamlessly integrate with QR code, RFID, facial, and palmprint biometrics.

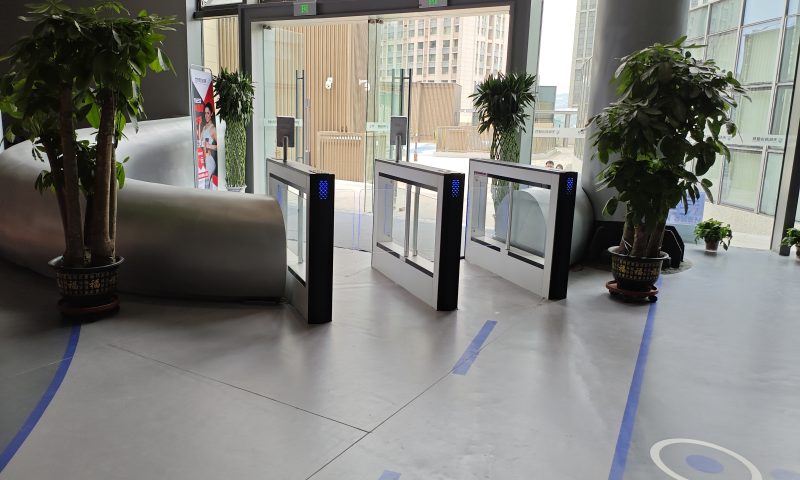

·Ideal for high-end gyms, office towers, commercial centers, hotels, and prestigious venues.

·Easily configure single-direction, bi-directional, or free passage modes via onboard control buttons.

·Triggers audio-visual alarms for illegal intrusion or reverse entry with CCTV linkage. Excellent anti-electromagnetic interference capability.

·Automatically opens during power outages (direction configurable) to ensure swift evacuation.

·Instantly stops upon encountering resistance. Auto-cancels permission and relocks if passage is not completed within 10 seconds (adjustable).

·Real-time audio broadcasts for authorized entry/exit and abnormal events (intrusion, tailgating, lingering).

·Onboard auto-fault diagnosis paired with intuitive LED directional lights for easy daily maintenance.

FAQ

How do I choose the right turnstile?

Start with the project security level, required passage width, expected user flow, indoor or outdoor environment and the identification method. Speed gates and flap barriers suit controlled pedestrian entrances, swing barriers can support wider passages, tripod turnstiles are compact and economical, and full-height turnstiles are intended for higher-security perimeter control.
Which identification methods can be integrated?

Depending on the selected model and project configuration, turnstiles can be paired with card readers, QR-code readers, face-recognition terminals and third-party access-control systems. Confirm the required reader type, mounting position, interface and control logic before finalizing the configuration.
Can the passage width be customized?

Passage width varies by turnstile type and model. Wider passages can be configured on suitable swing-barrier or sliding-gate solutions for luggage, accessibility or project-specific circulation needs. Confirm the required clear width before selecting the final model.
Can the gates be used outdoors?

Outdoor use depends on the selected model, enclosure design and site conditions. For exposed installations, confirm weather protection, drainage, power and cable protection, foundation requirements and any canopy or environmental protection needed for the project.
How are emergencies and power failures handled?

Emergency and power-failure behavior depends on the turnstile mechanism, controller and project configuration. The required fail-safe or release behavior should be confirmed during product selection and coordinated with the building access-control and emergency-evacuation plan.
Where can I download technical documents?

Open Support → Documents Download and select the relevant product series. Available document packs can include installation instructions, dimensional drawings and wiring diagrams. If a required document is not listed, contact support with the exact product model.
