Features

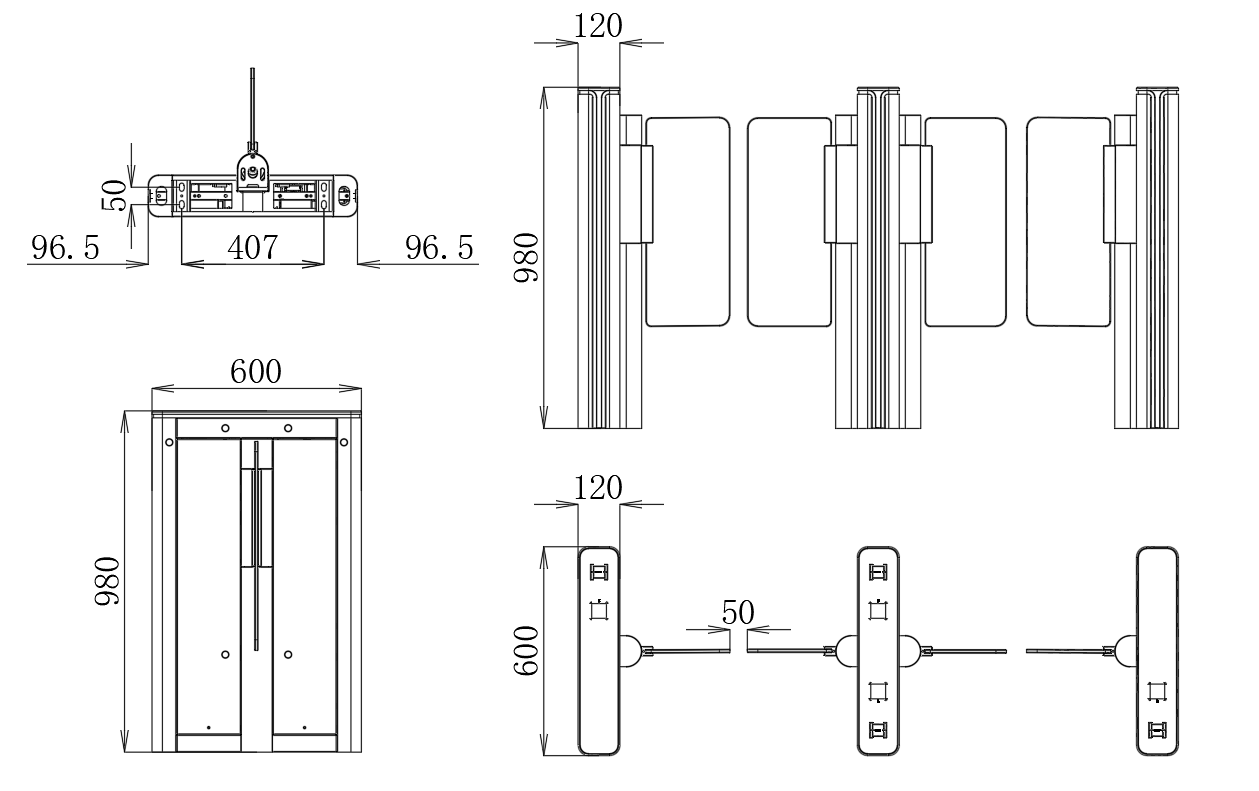

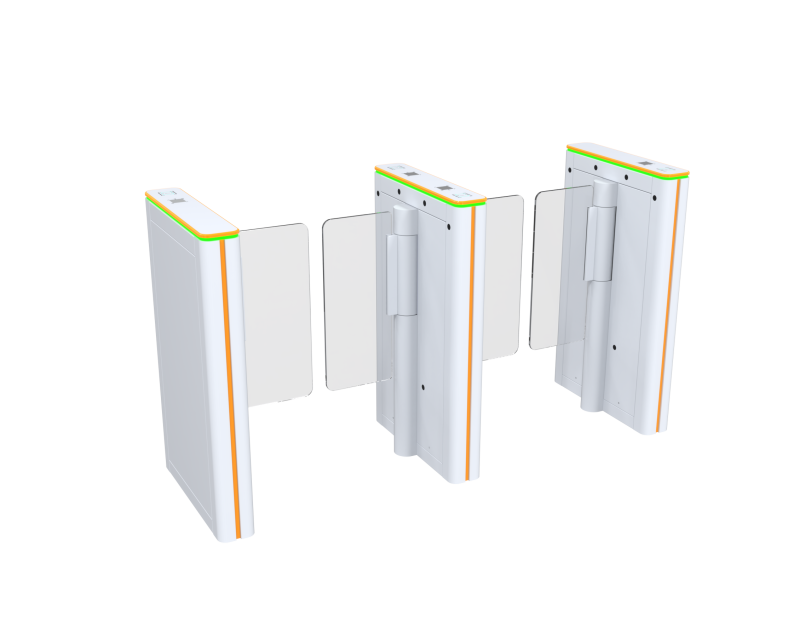

· 600×120×980 mm chassis in signature VELAXIZ style. Supports OEM custom logo integration.

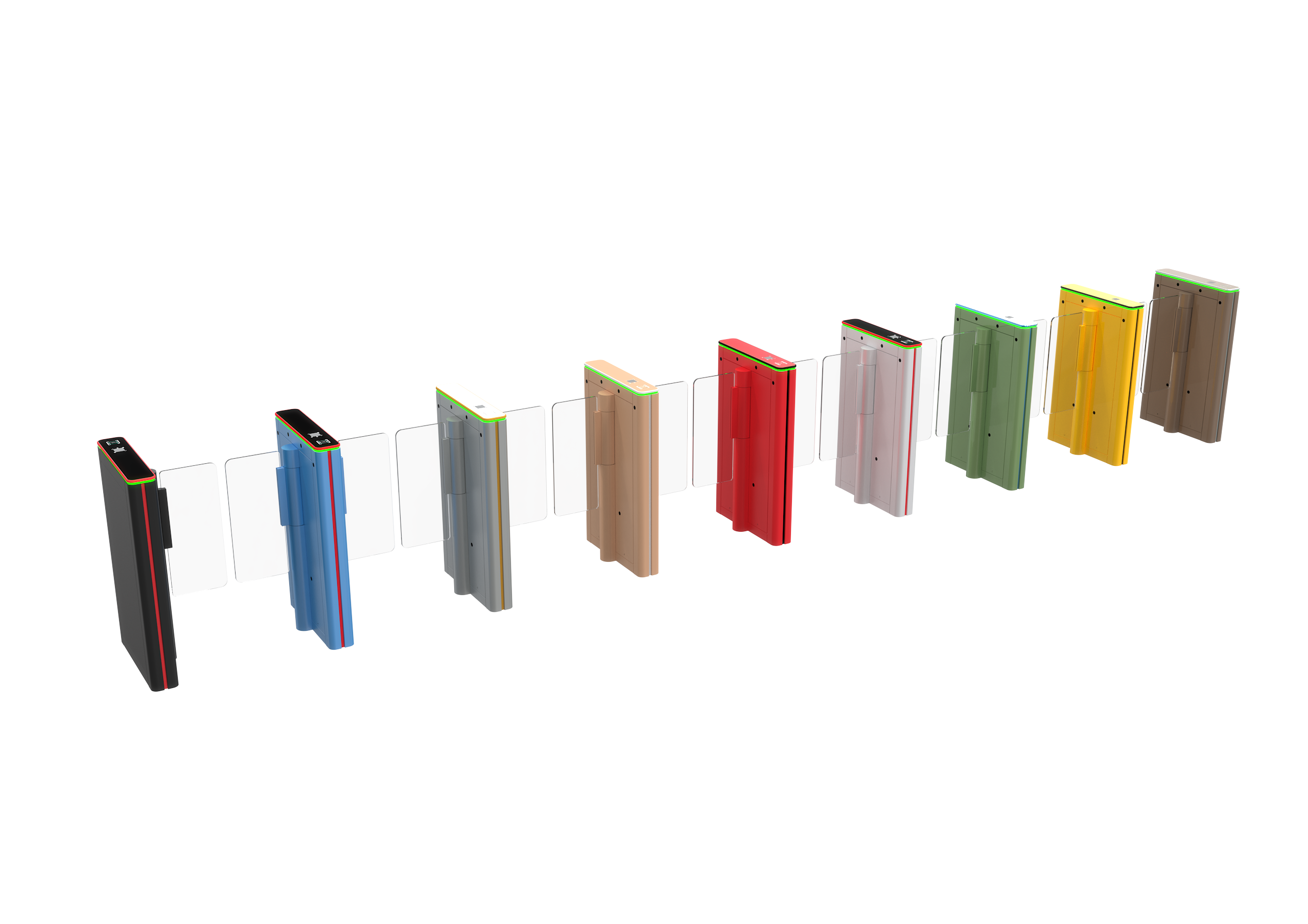

· Heavy-duty internal steel frame. Features a flush-embedded top lid structure with Space Grey aluminum alloy or full stainless steel outer body (matte black finish). Supports anodizing, electroplating, powder coating & custom colors.
· Powered by a patented high-precision mechanism with optional Brushless DC or Servo drives for ultra-long durability.
· Standard 700–1000 mm lane width, expandable to 1500 mm+ for wide-access needs (e.g., ADA compliance, large luggage).
· Precision IR array tracks movement to prevent tailgating and lingering. Optional LiDAR sensors available.
· Pre-configured RS232, RS485 & TCP/IP ports for seamless connection with RFID, QR code, facial & palmprint biometrics.

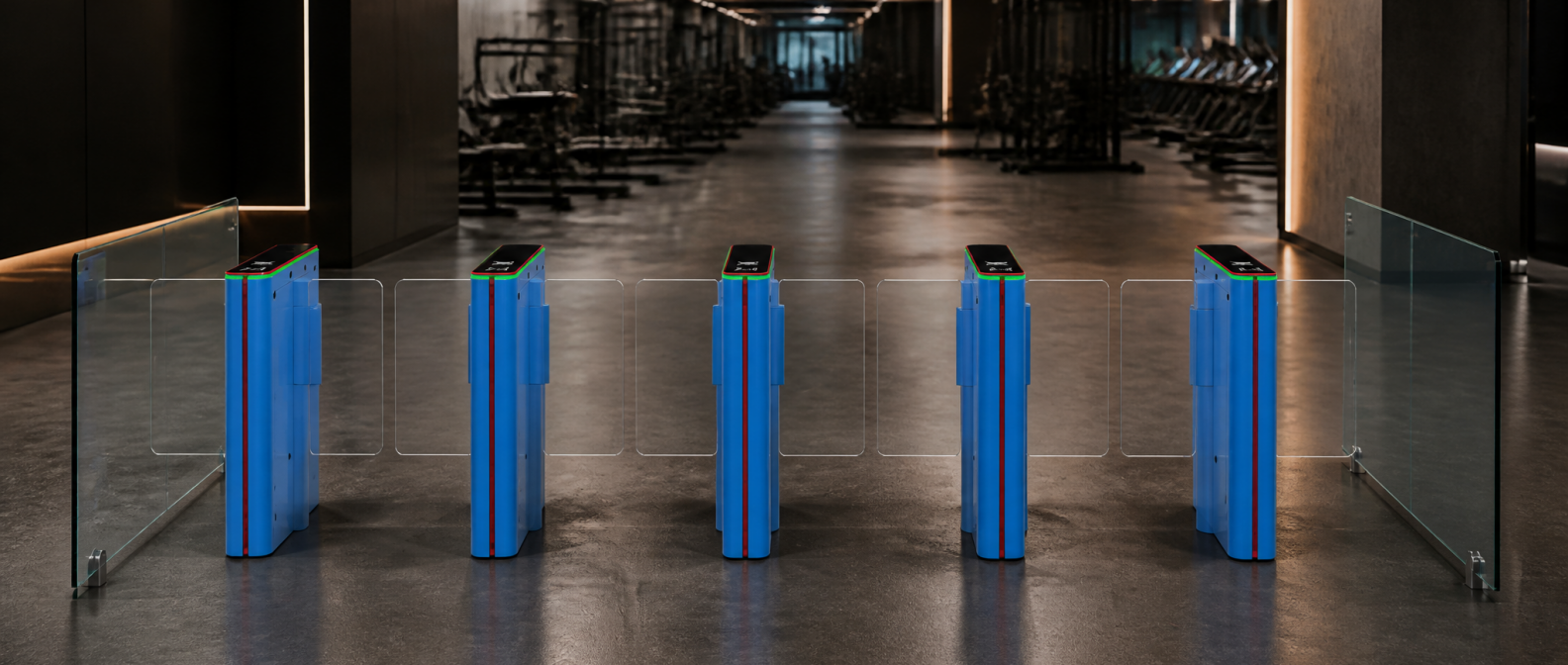

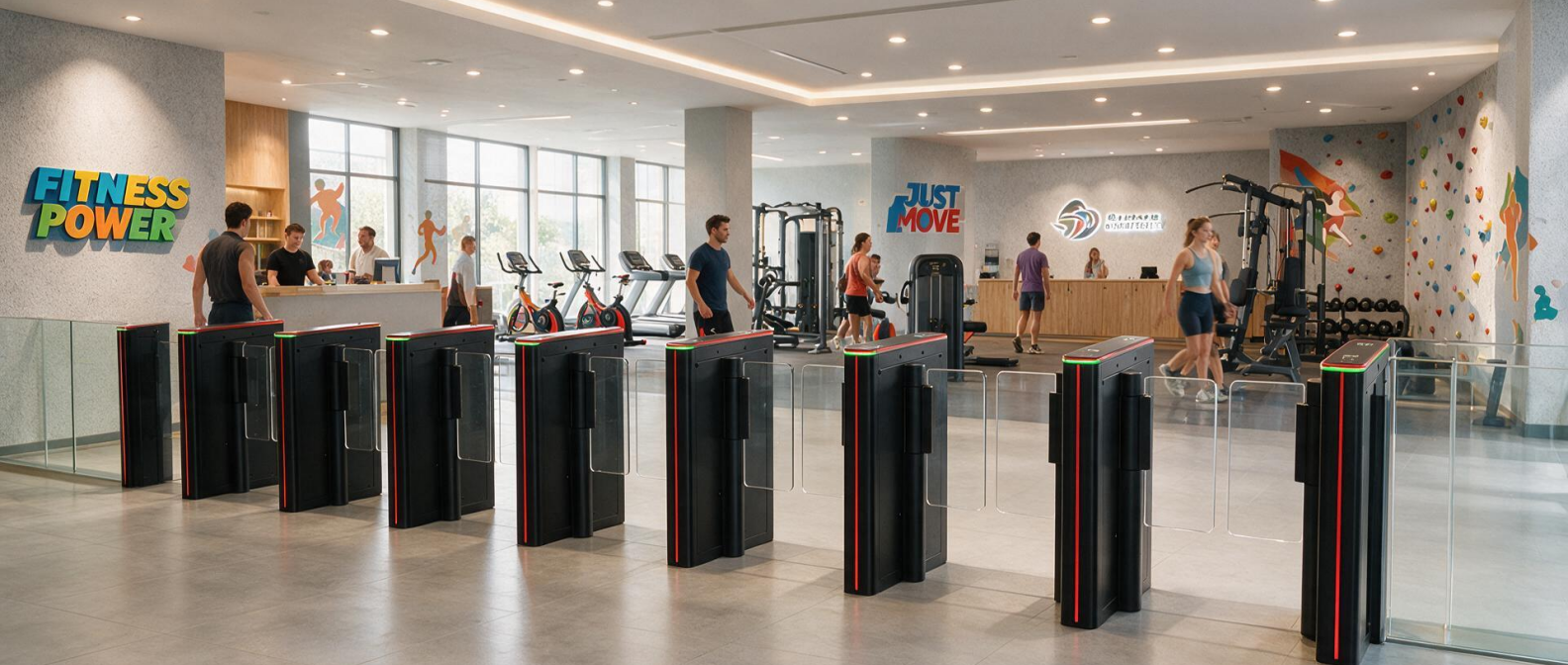

· High-end gyms, corporate office towers, luxury hotels, commercial centers, and prestigious public venues.
· Easily configure single-direction, bi-directional, or free-passage settings via onboard controls.
· Instant alarm on unauthorized or reverse entry with CCTV linkage. Built-in anti-electromagnetic interference.
· Automatic fail-safe opening during power outages with customizable evacuation direction.
· Immediate obstacle-stop logic to prevent injury. Auto-cancels authorization if passage isn’t completed within 10s (adjustable).
· Real-time audio broadcasts for authorized entry, exit, tailgating, and illegal intrusion attempts.
· Onboard auto-diagnosis paired with intuitive LED directional lights for effortless maintenance.
Integration
Customization
Reasonable and reliable design, low noise, smooth operation and long service life；
With functions of anti-tail, anti-reverse pass and so on;
Card can be set "with memory" or "without memory" functions;
With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
With infrared anti-clip function (anti-clip when gate is open or running);
Compatible with IC, ID card, scanning and face recognition,etc.
Two modes of operation are available: open or closed.
Various working modes are available, including two-way card reading and one-way card reading,etc.
Certification
VX.LB08
Downloads
FAQ
How do I choose the right turnstile?
Start with the project security level, required passage width, expected user flow, indoor or outdoor environment and the identification method. Speed gates and flap barriers suit controlled pedestrian entrances, swing barriers can support wider passages, tripod turnstiles are compact and economical, and full-height turnstiles are intended for higher-security perimeter control.
Which identification methods can be integrated?
Depending on the selected model and project configuration, turnstiles can be paired with card readers, QR-code readers, face-recognition terminals and third-party access-control systems. Confirm the required reader type, mounting position, interface and control logic before finalizing the configuration.
Can the passage width be customized?
Passage width varies by turnstile type and model. Wider passages can be configured on suitable swing-barrier or sliding-gate solutions for luggage, accessibility or project-specific circulation needs. Confirm the required clear width before selecting the final model.
Can the gates be used outdoors?
Outdoor use depends on the selected model, enclosure design and site conditions. For exposed installations, confirm weather protection, drainage, power and cable protection, foundation requirements and any canopy or environmental protection needed for the project.
How are emergencies and power failures handled?
Emergency and power-failure behavior depends on the turnstile mechanism, controller and project configuration. The required fail-safe or release behavior should be confirmed during product selection and coordinated with the building access-control and emergency-evacuation plan.
Where can I download technical documents?
Open Support → Documents Download and select the relevant product series. Available document packs can include installation instructions, dimensional drawings and wiring diagrams. If a required document is not listed, contact support with the exact product model.
