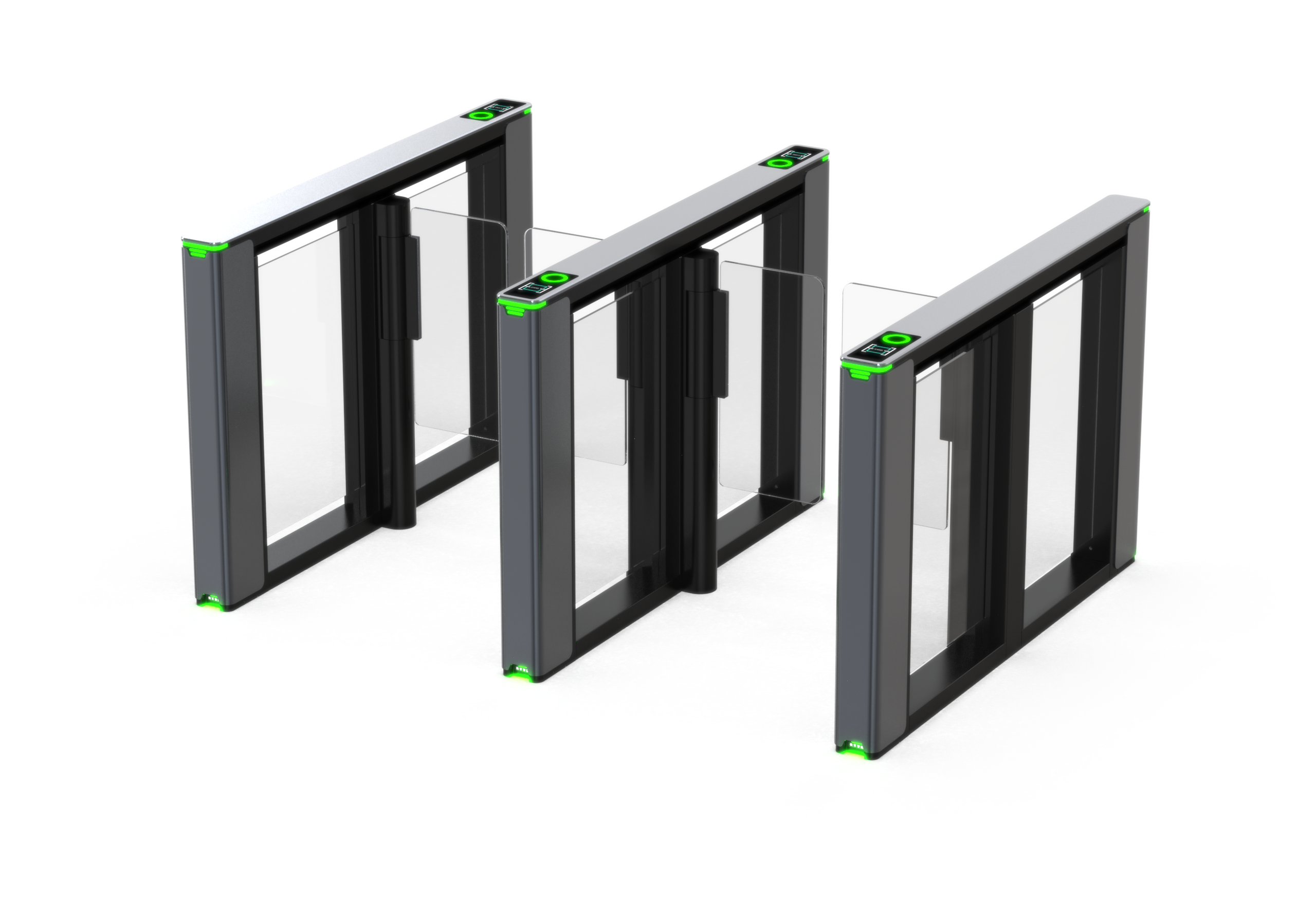

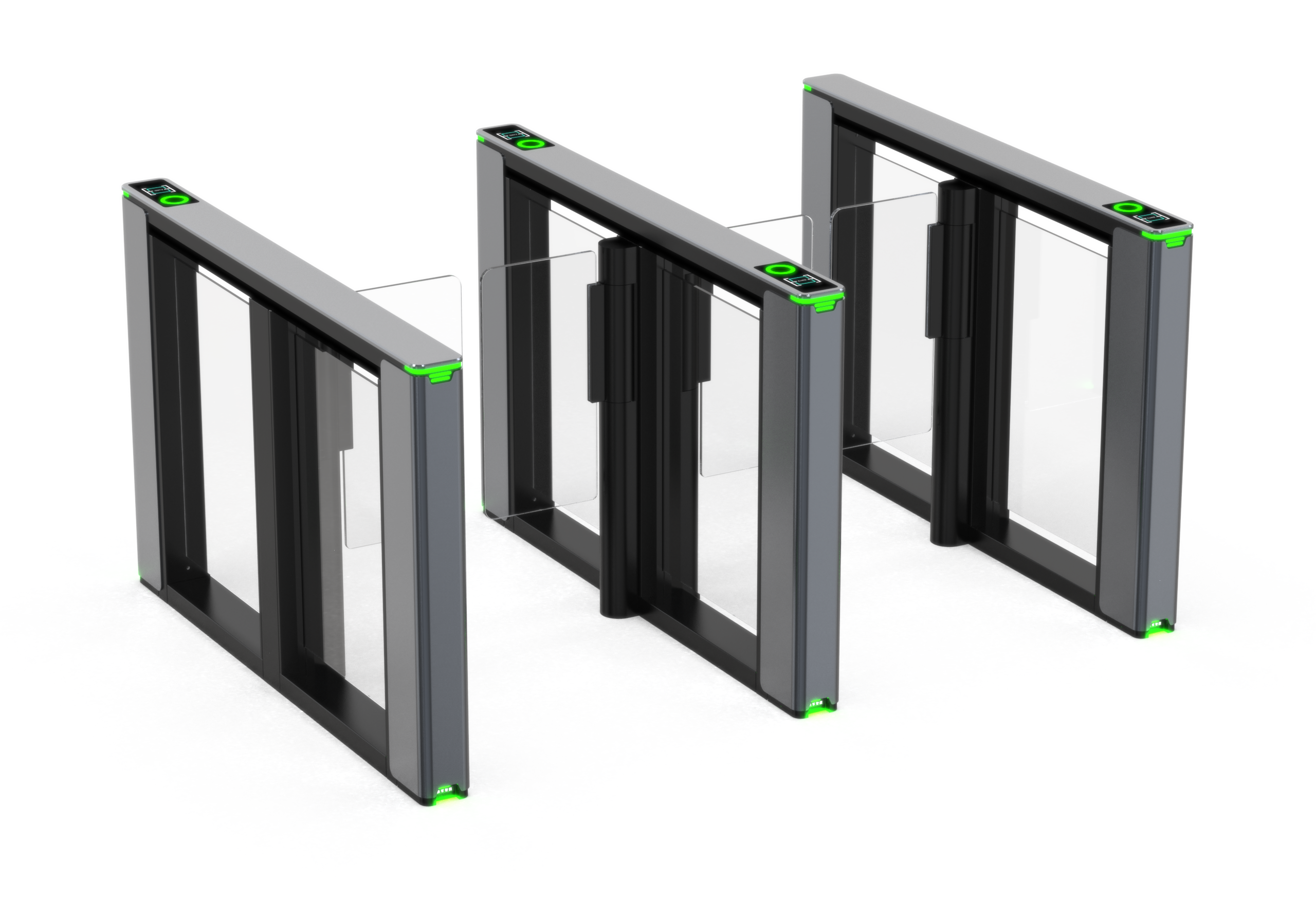

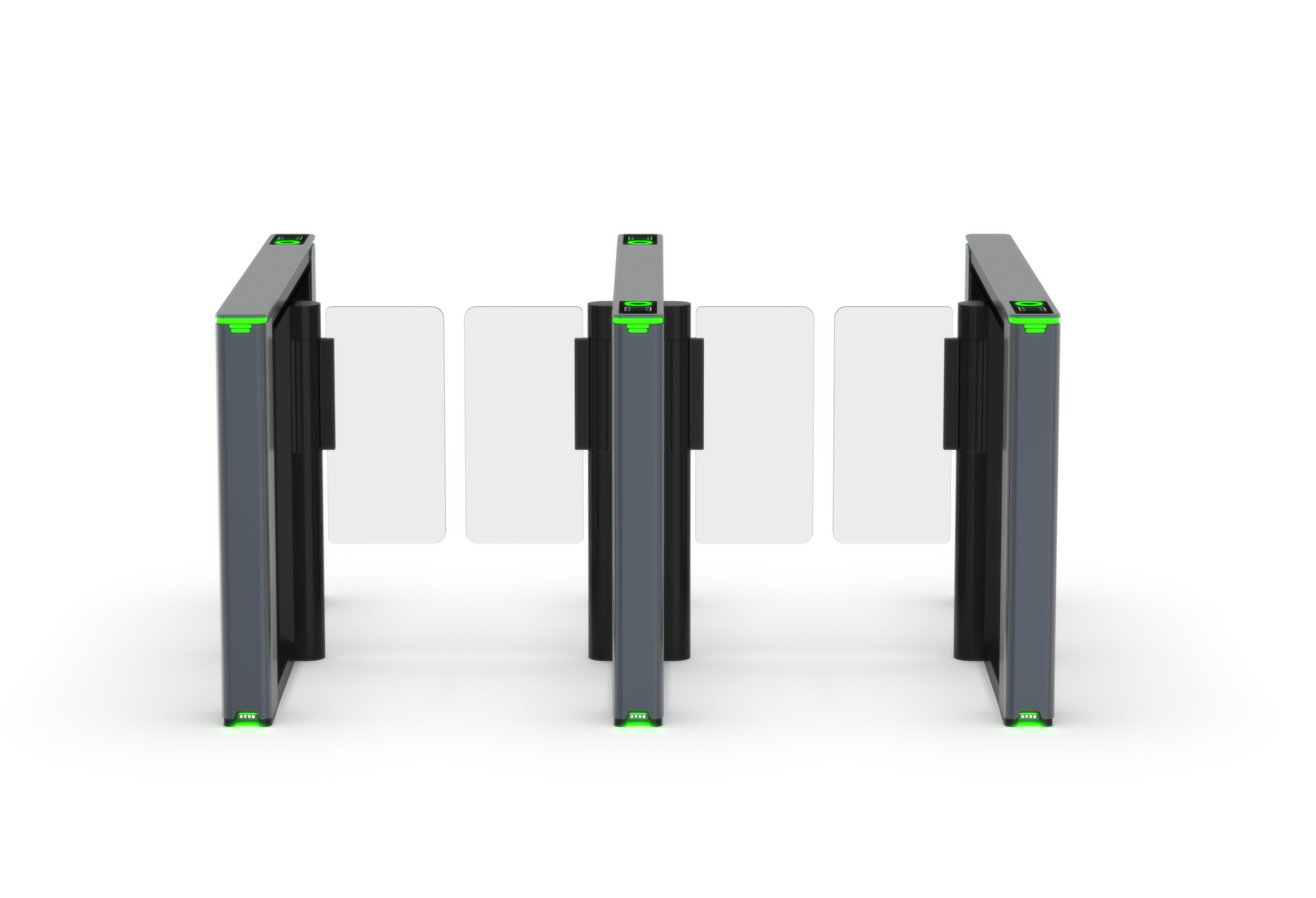

Visual scene render
Features
·Compact 1500×120×980 mm chassis in signature VELAXIZ style. Supports OEM custom logo integration.
·Various working modes are available, including two-way card reading and one-way card reading,etc.
·Heavy-duty steel internal frame. Outer chassis available in corrosion-resistant electrolytic plate (matte black) or full stainless steel. Top covers and columns crafted from Space Grey aluminum alloy. Supports anodizing, electroplating, powder coating & custom colors.
·Powered by a patented high-precision mechanism with optional Brushless DC or Servo drives for extreme durability.
·Standard 700–1000 mm lane width, expandable to 1500 mm+ for wide-access needs (e.g., ADA compliance, large luggage).
·Precision IR array tracks movement to prevent tailgating and lingering. Optional LiDAR sensors available.
·Pre-configured RS232, RS485 & TCP/IP ports for seamless connection with RFID, QR code, facial & palmprint biometrics.

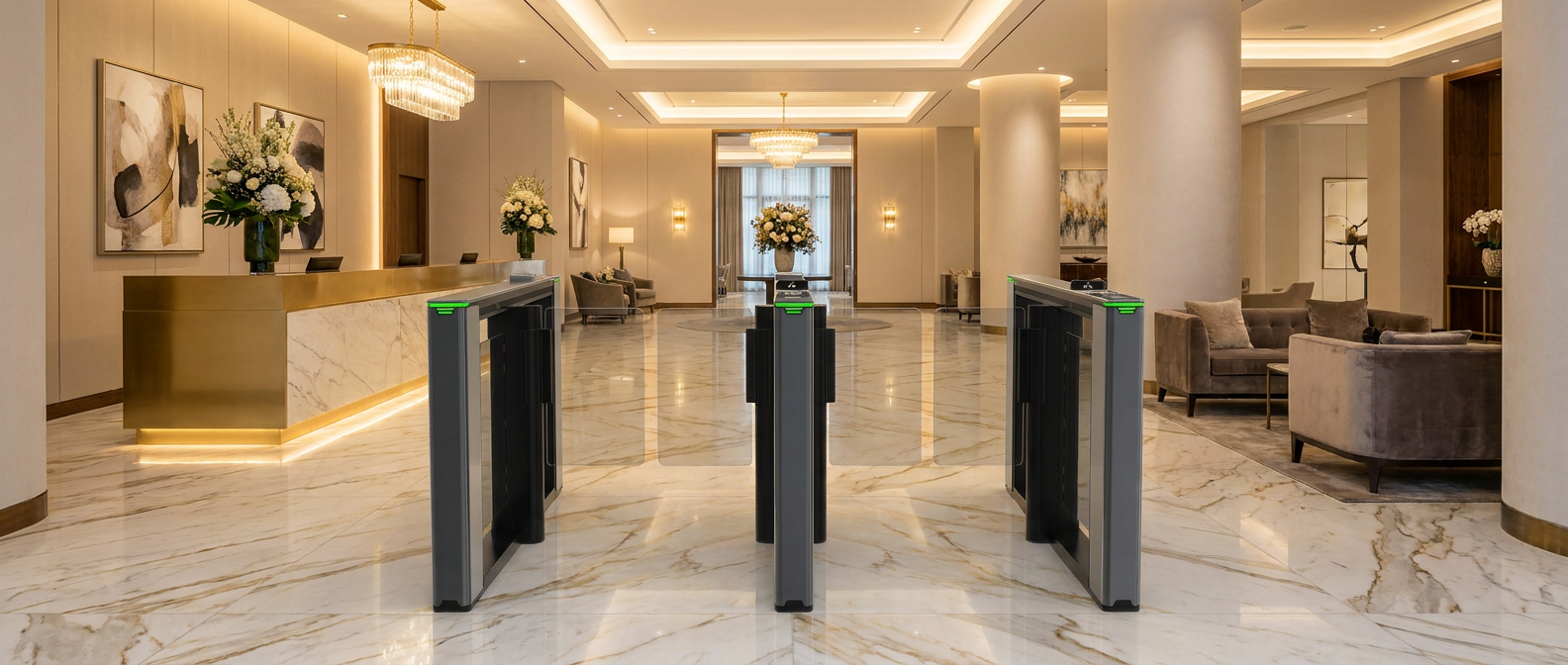

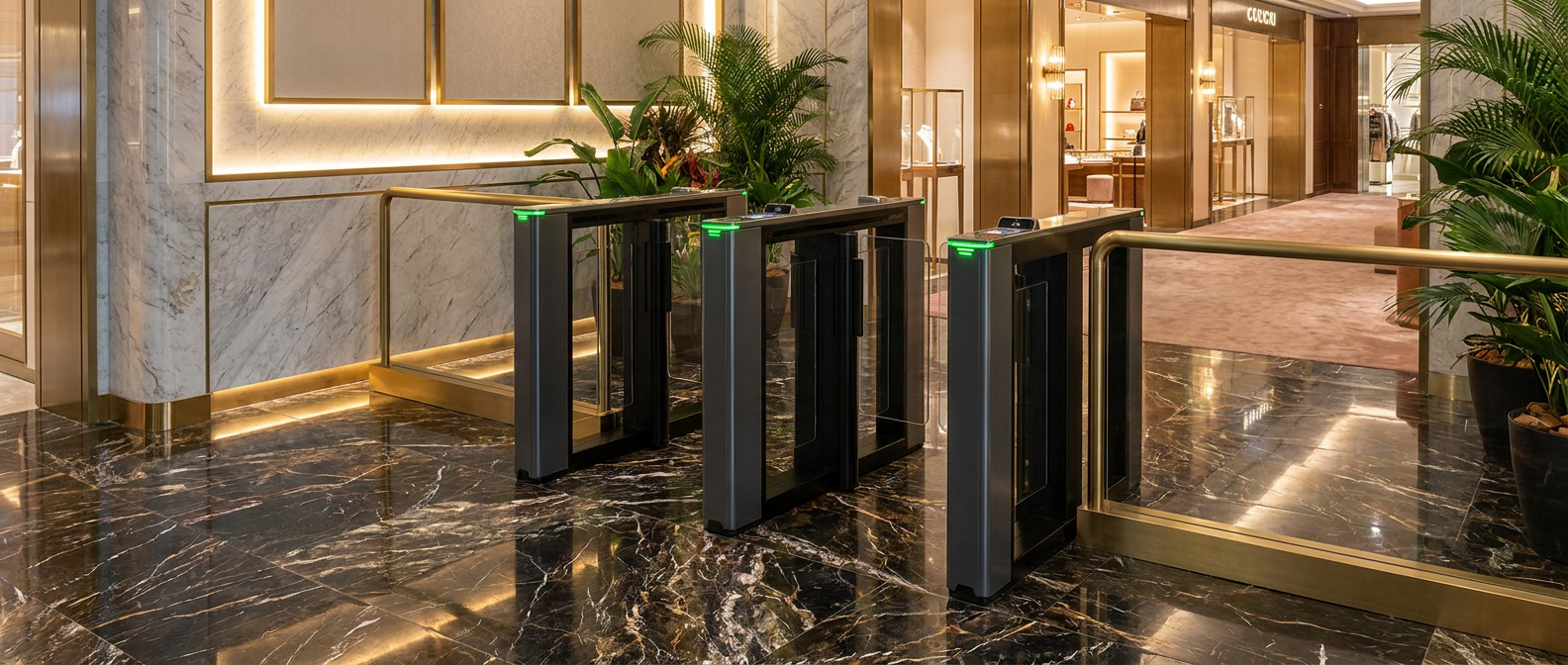

·High-end residential communities, commercial office towers, corporate headquarters, shopping malls, and luxury public venues.
·Easily configure single-direction, bi-directional, or free-passage settings via onboard controls.
·Instant alarm on unauthorized or reverse entry with CCTV linkage. Built-in anti-electromagnetic interference.
·Automatic fail-safe opening during power outages with customizable evacuation direction.
·Immediate obstacle-stop logic to prevent injury. Auto-cancels authorization if passage isn’t completed within 10s (adjustable).
·Real-time audio broadcasts for authorized entry, exit, tailgating, and illegal intrusion attempts.
·Onboard auto-diagnosis paired with intuitive LED directional lights for effortless maintenance.

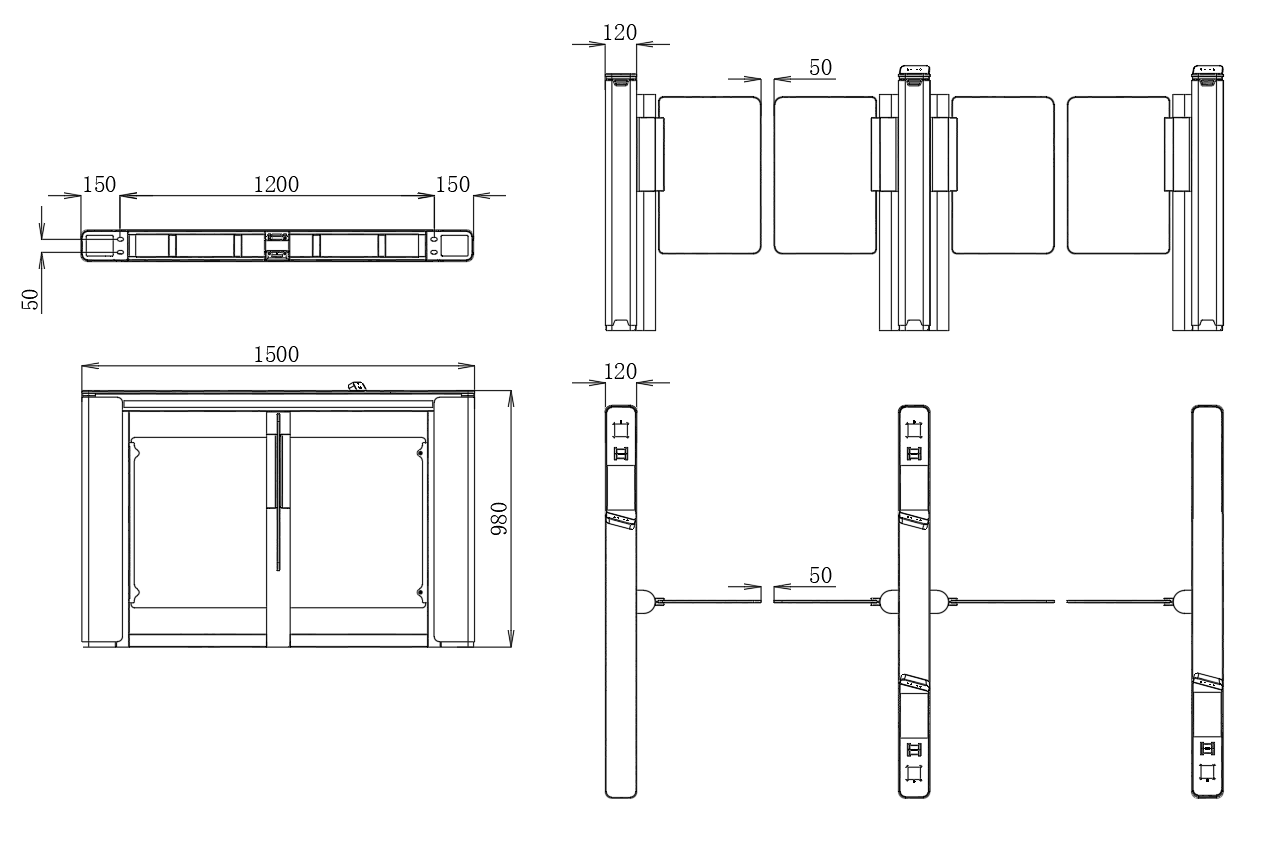

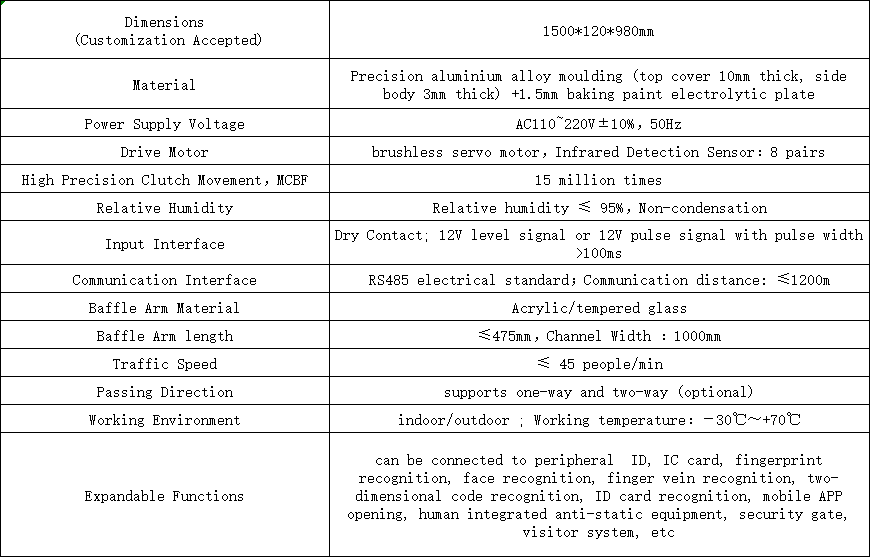

Size Drawing & Parameters
Integration
Certification
Video
Downloads
Relevant Cases
FAQ
How do I choose the right turnstile?
Start with the project security level, required passage width, expected user flow, indoor or outdoor environment and the identification method. Speed gates and flap barriers suit controlled pedestrian entrances, swing barriers can support wider passages, tripod turnstiles are compact and economical, and full-height turnstiles are intended for higher-security perimeter control.
Which identification methods can be integrated?
Depending on the selected model and project configuration, turnstiles can be paired with card readers, QR-code readers, face-recognition terminals and third-party access-control systems. Confirm the required reader type, mounting position, interface and control logic before finalizing the configuration.
Can the passage width be customized?
Passage width varies by turnstile type and model. Wider passages can be configured on suitable swing-barrier or sliding-gate solutions for luggage, accessibility or project-specific circulation needs. Confirm the required clear width before selecting the final model.
Can the gates be used outdoors?
Outdoor use depends on the selected model, enclosure design and site conditions. For exposed installations, confirm weather protection, drainage, power and cable protection, foundation requirements and any canopy or environmental protection needed for the project.
How are emergencies and power failures handled?
Emergency and power-failure behavior depends on the turnstile mechanism, controller and project configuration. The required fail-safe or release behavior should be confirmed during product selection and coordinated with the building access-control and emergency-evacuation plan.
Where can I download technical documents?
Open Support → Documents Download and select the relevant product series. Available document packs can include installation instructions, dimensional drawings and wiring diagrams. If a required document is not listed, contact support with the exact product model.
