Features

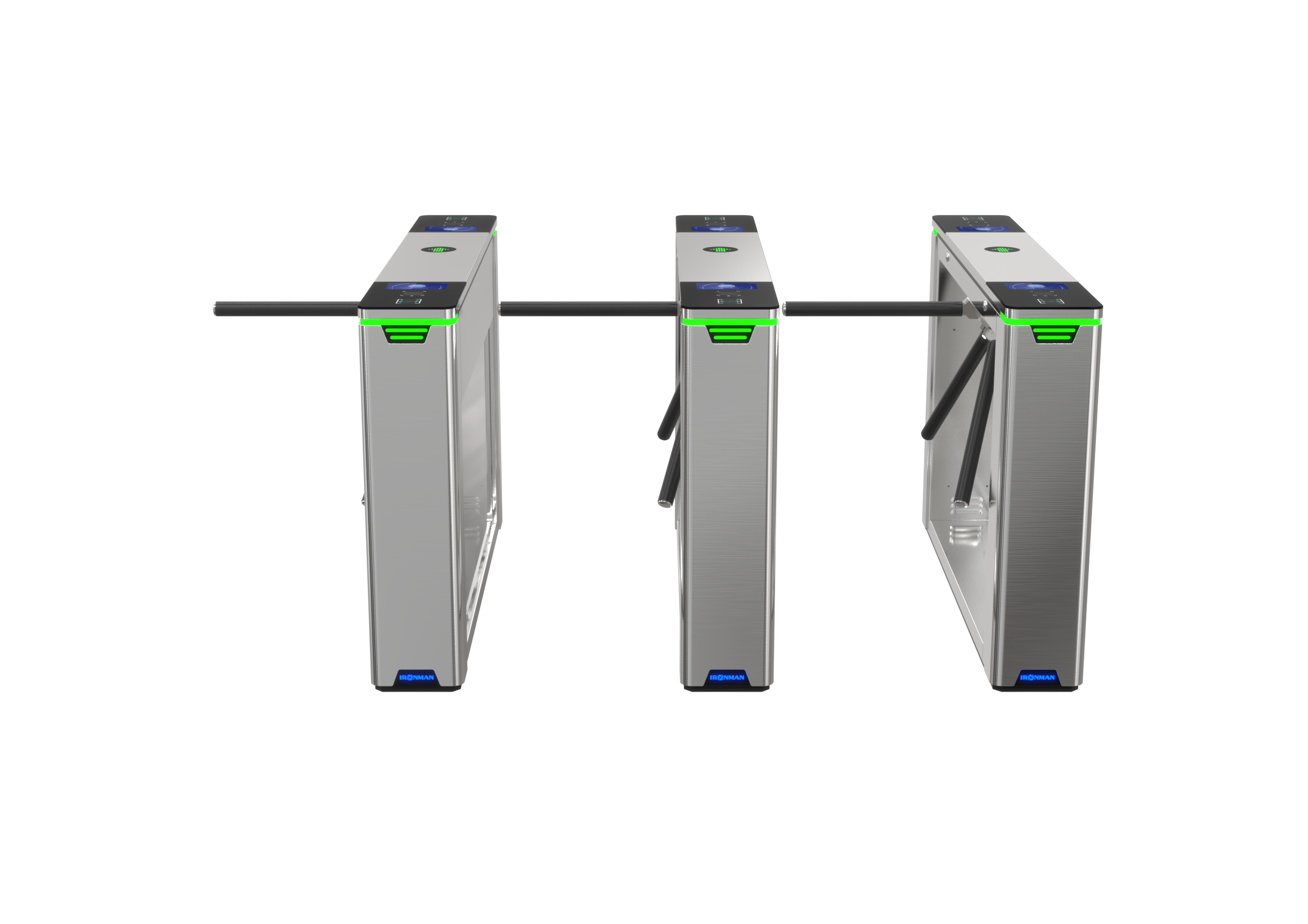

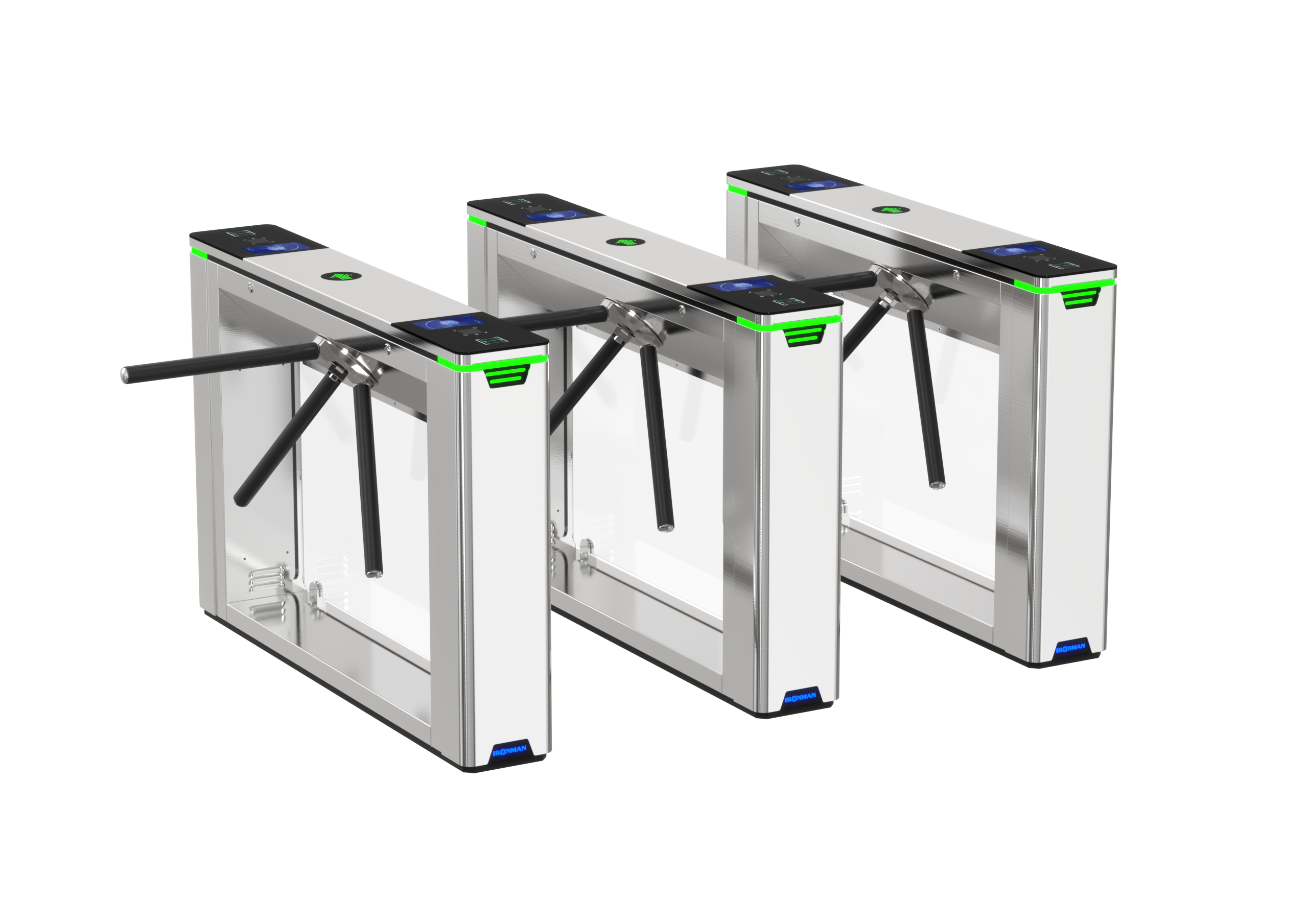

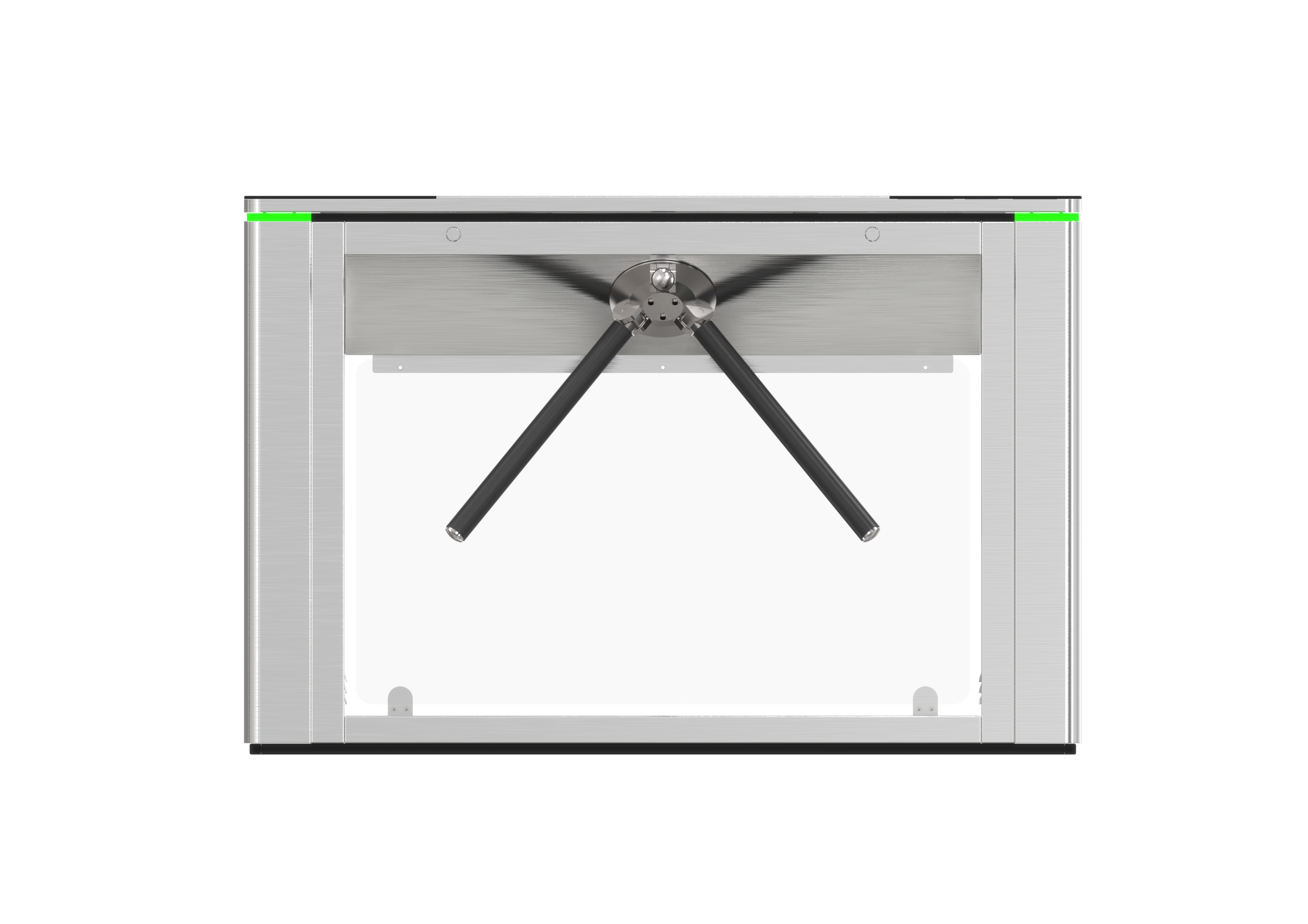

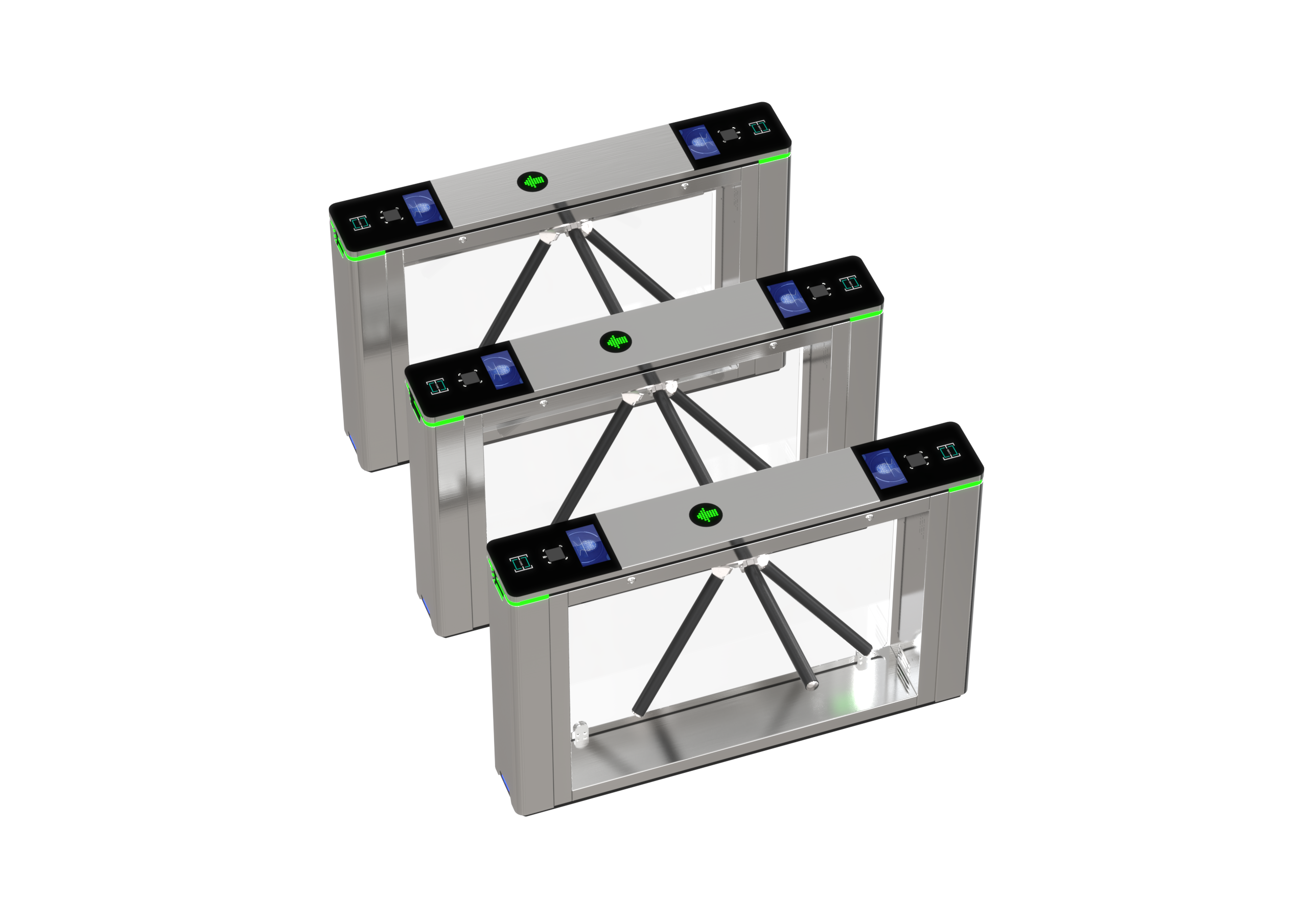

·1500×240×1000 mm chassis featuring a modern minimalist aesthetic. Supports custom logo branding.
·Built with an internal steel frame and stainless steel housing. Supports powder coating, electroplating, anodization, and custom finish colors.
·Powered by a patented automatic mechanism, delivering an ultra-long operational lifespan of 15 million cycles for demanding environments.
·Recommended passage lane width ranging from 550 mm to 600 mm.
·Effectively prevents unauthorized tailgating, reverse entry, and room lingering.

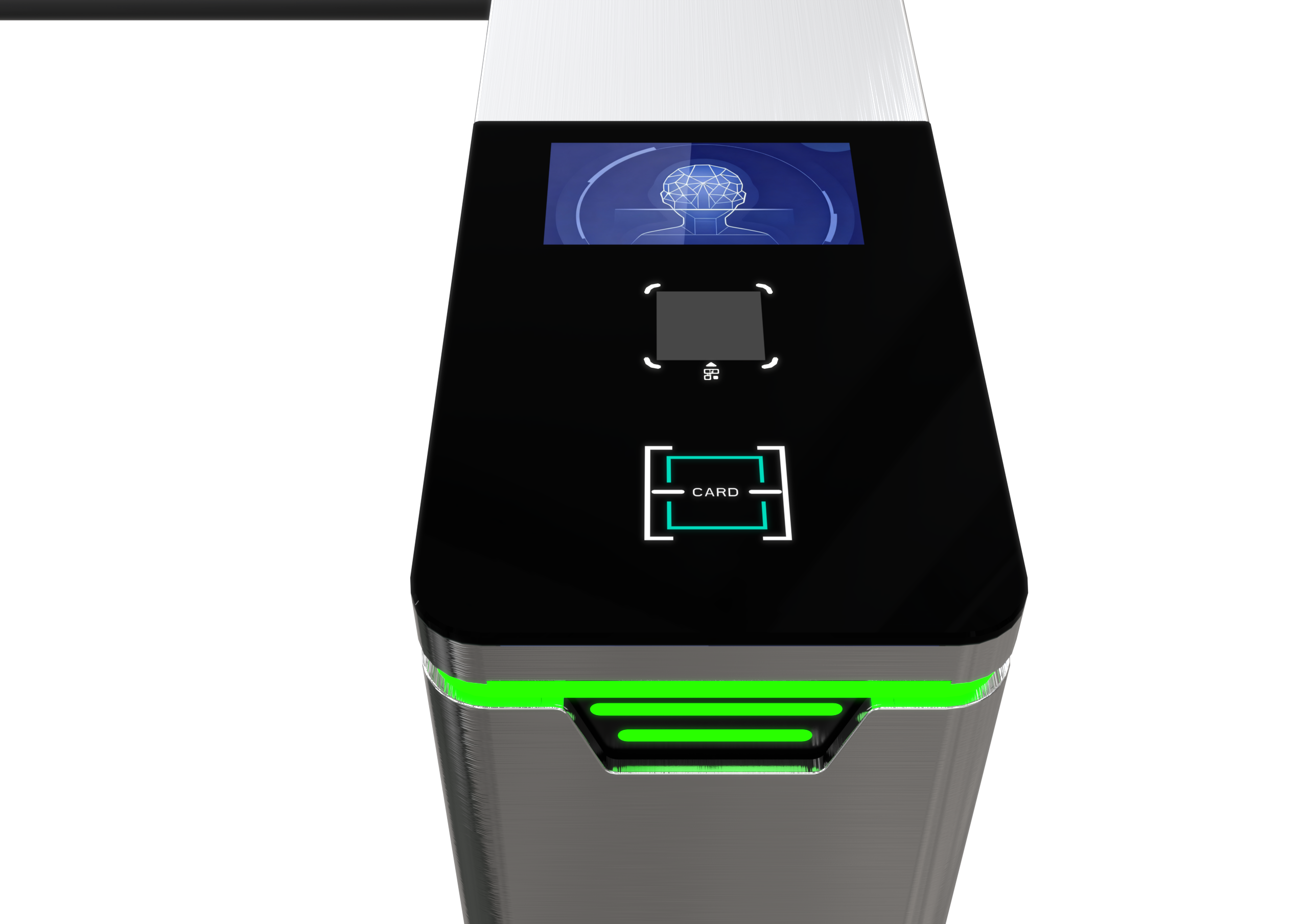

·Pre-configured with rich expansion ports, RS232, RS485, and TCP/IP serial interfaces for seamless integration with QR codes, RFID cards, face recognition, and palmprint access control systems.

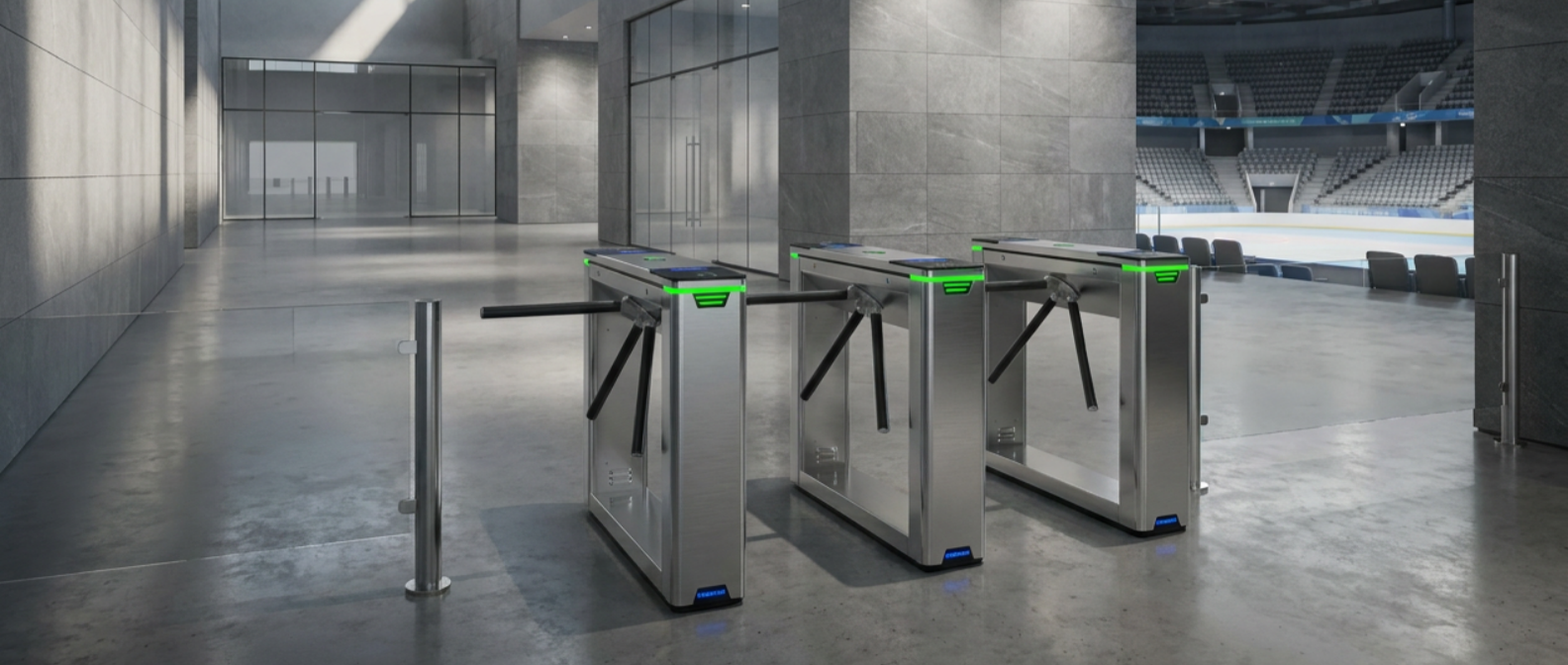

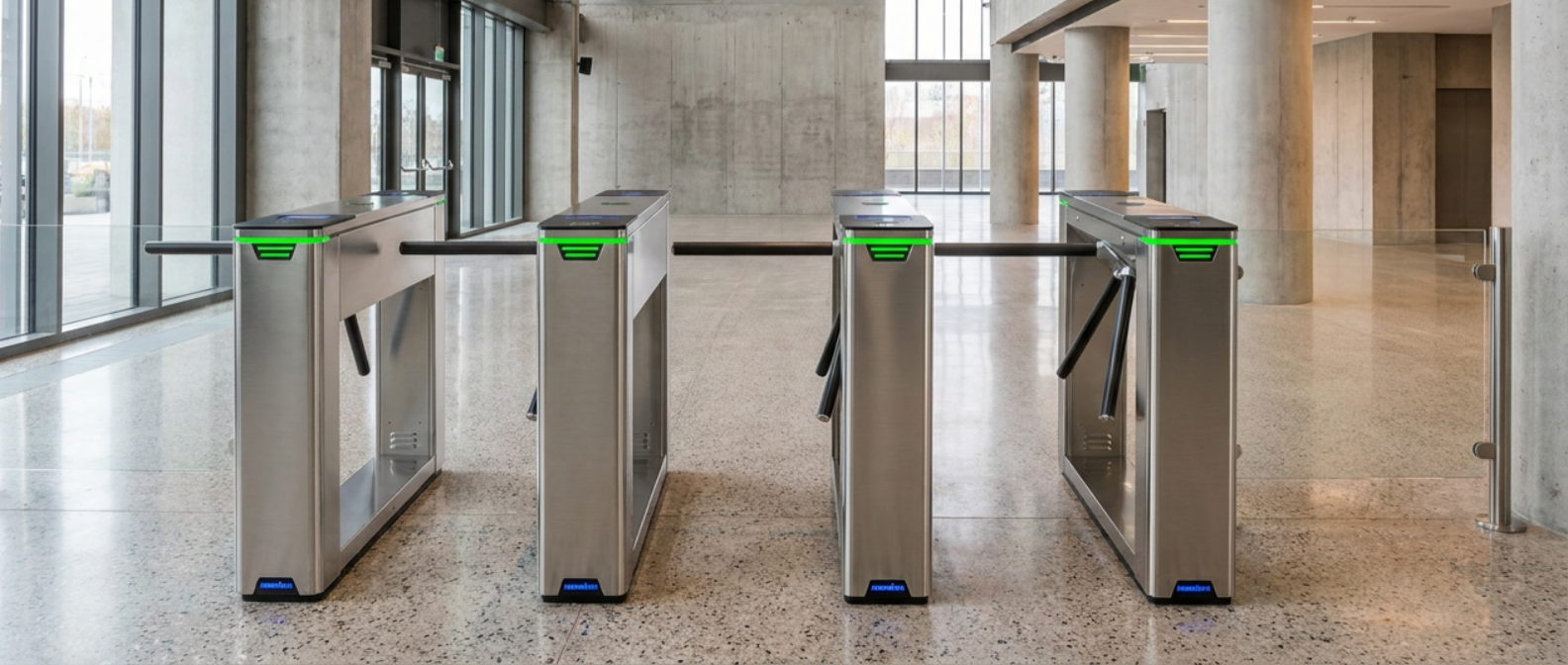

·Suitable for airports, metro stations, parks, gyms, libraries, commercial venues, residential complexes, scenic sites, transit hubs, entertainment facilities, and public restrooms.
·Easily configure single-direction, bi-directional, or free passage modes via motherboard control buttons to meet diverse access management needs.
·Triggers audio-visual alarms for illegal intrusion and reverse entry with surveillance linkage capability. Features strong resistance to electromagnetic interference.
·Automatically unlocks and opens during power outages (direction configurable) to guarantee rapid emergency evacuation.
·Instantly halts movement upon sensing obstacles to prevent pinching. Automatically cancels access rights and relocks if passage is not completed within 10 seconds (adjustable).
·Real-time voice prompts for entry/exit access, plus automated audio alerts for security events (unauthorized intrusion, tailgating, overtime lingering).
·Motherboard supports automated fault self-diagnosis, paired with intuitive LED directional indicators for quick daily maintenance.

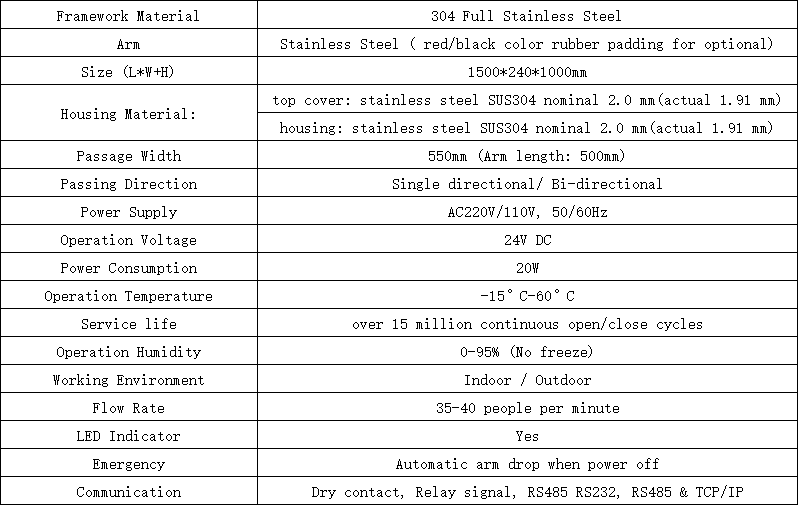

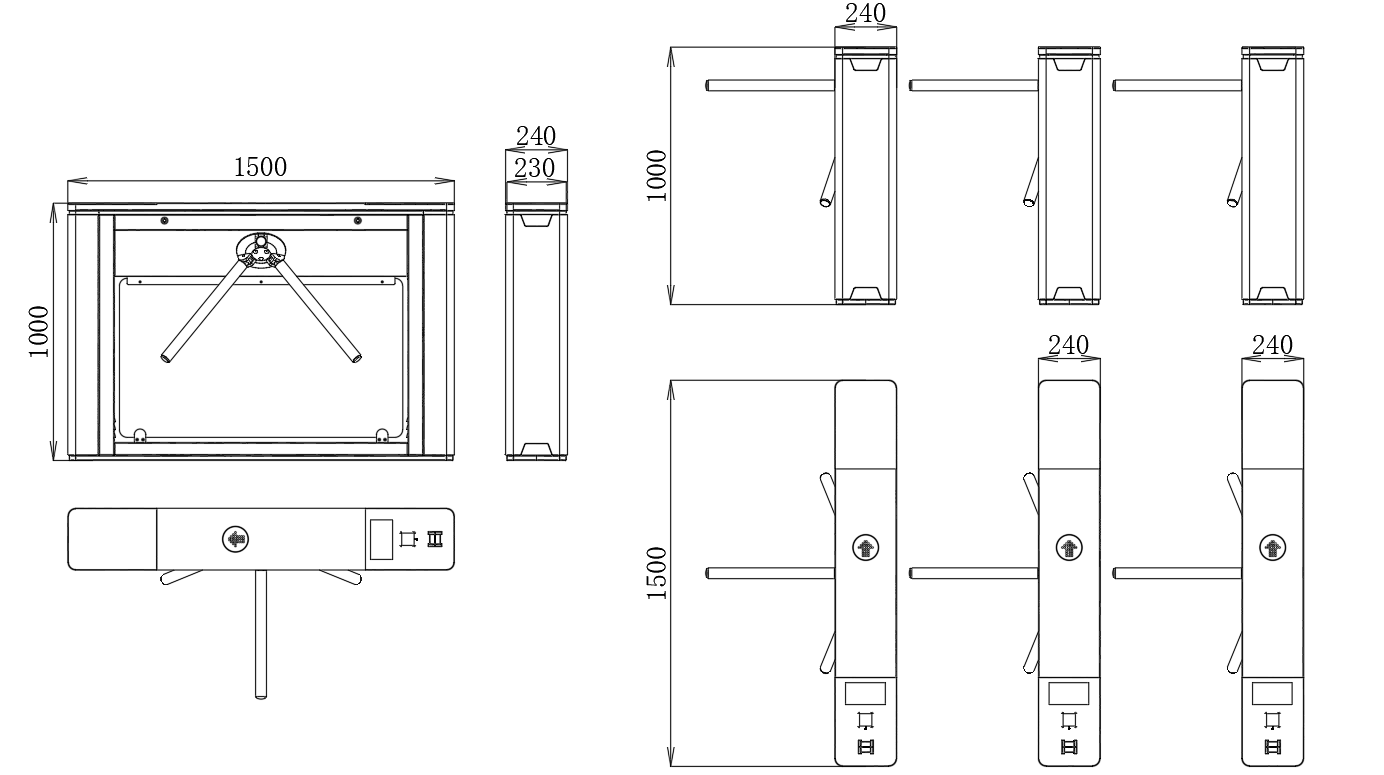

Size Drawing & Parameters
Integration
Certification
Downloads
Relevant Cases
FAQ
How do I choose the right turnstile?
Start with the project security level, required passage width, expected user flow, indoor or outdoor environment and the identification method. Speed gates and flap barriers suit controlled pedestrian entrances, swing barriers can support wider passages, tripod turnstiles are compact and economical, and full-height turnstiles are intended for higher-security perimeter control.
Which identification methods can be integrated?
Depending on the selected model and project configuration, turnstiles can be paired with card readers, QR-code readers, face-recognition terminals and third-party access-control systems. Confirm the required reader type, mounting position, interface and control logic before finalizing the configuration.
Can the passage width be customized?
Passage width varies by turnstile type and model. Wider passages can be configured on suitable swing-barrier or sliding-gate solutions for luggage, accessibility or project-specific circulation needs. Confirm the required clear width before selecting the final model.
Can the gates be used outdoors?
Outdoor use depends on the selected model, enclosure design and site conditions. For exposed installations, confirm weather protection, drainage, power and cable protection, foundation requirements and any canopy or environmental protection needed for the project.
How are emergencies and power failures handled?
Emergency and power-failure behavior depends on the turnstile mechanism, controller and project configuration. The required fail-safe or release behavior should be confirmed during product selection and coordinated with the building access-control and emergency-evacuation plan.
Where can I download technical documents?
Open Support → Documents Download and select the relevant product series. Available document packs can include installation instructions, dimensional drawings and wiring diagrams. If a required document is not listed, contact support with the exact product model.
