orrect installation is one of the most important factors affecting the long-term performance of a pedestrian turnstile. Even a well-designed speed gate, swing barrier or tripod turnstile can experience operational problems if the foundation is uneven, cabinets are misaligned, wiring is incorrect or sensors are not properly commissioned. For this reason, turnstile installation should be treated as part of the complete access control system rather than simply fixing equipment to the floor.
Installation should begin with a site inspection. The project team should confirm: Total entrance width Number of required lanes Pedestrian flow direction Standard and accessible lane widths Floor condition Power location Network and access control cabling Emergency evacuation requirements For multi-lane speed gate installations, accurate layout planning is particularly important because small errors can become highly visible when several cabinets are positioned side by side.
Turnstile cabinets should be installed on a solid, level surface. Uneven flooring can cause cabinet height differences and affect the alignment of glass barriers or swing arms. Before drilling any fixing holes, technicians should check the installation area with appropriate measuring equipment. Where raised floors or decorative finishes are used, the structural fixing method should also be evaluated before installation.
Use the project layout drawing or installation template to mark the cabinet positions. Check: Cabinet center lines Lane widths Distance between cabinets Distance from walls and other equipment Reader access space Maintenance access Do not rely only on visual judgment. A few millimeters of error on the first cabinet can become a much larger alignment problem across a multi-lane entrance.
Place all cabinets in their planned positions before fully tightening the anchor bolts. This allows technicians to confirm that: Cabinets are parallel Top surfaces are aligned Passage widths are correct Barrier panels move without interference Only after the full entrance alignment has been checked should the cabinets be permanently fixed.

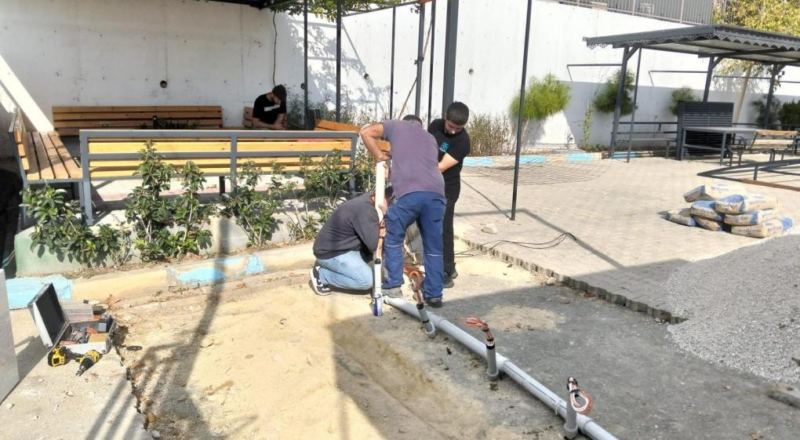

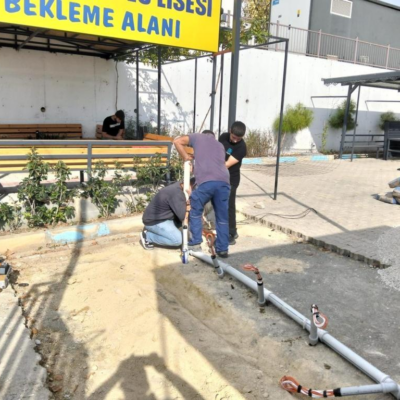

Turnstiles usually require power, access control signals and, depending on the system, network communication. Cables should be separated and routed clearly to simplify future maintenance. Typical connections may include: AC power Access control controller RFID reader QR reader Facial recognition terminal RS232 / RS485 TCP/IP Fire alarm or emergency input The exact wiring depends on the selected turnstile and access control architecture.
he turnstile is normally the physical execution device. The access control system verifies the user’s identity and sends an authorized opening signal. Before commissioning, technicians should confirm: Entry and exit directions Normally open / normally closed signal logic Reader communication Opening time Unauthorized entry alarms Visitor authorization Emergency release behavior
After power is connected, test the gate without heavy pedestrian traffic. Check whether the barrier: Opens smoothly Closes smoothly Stops when an obstacle is detected Returns to the correct closed position Operates in the correct direction Unusual vibration or noise should be investigated before the system is put into daily use.
For optical speed gates and swing barriers, sensor commissioning is critical. Walk through the lane in different conditions: Normal single-person passage Slow walking Fast walking Reverse movement Two people entering closely User stopping inside the lane The purpose is to confirm that pedestrian detection and safety logic are operating correctly.
Emergency behavior should be tested before project handover. Depending on the system design, the gate may need to open, unlock or enter another safe condition after receiving a fire alarm or emergency signal. This should be coordinated with the building’s life-safety system.
Before handover, perform a complete inspection of all lanes. Check cabinet fixation, barrier alignment, readers, sensors, direction indicators, alarms and access permissions. A good installation process reduces future service calls and helps the turnstile operate consistently over its intended lifecycle.
Typical installation problems include: Installing on an uneven floor Incorrect lane spacing Fixing cabinets before checking alignment Poor cable organization Reversing entry and exit control signals Failing to test sensors Ignoring emergency integration Most of these issues are easier to correct before the entrance is placed into operation.
Installation time depends on the number of lanes, site preparation, cabling and access control integration.
Most commercial turnstiles require secure floor fixing to maintain stability and alignment.
For larger projects, power, network and signal wiring should ideally be planned during site preparation.
Installation should be performed by trained technicians or qualified access control system integrators familiar with electrical, mechanical and system commissioning requirements. Recommended Internal Links: Speed Gates / Swing Barrier Gates / Access Control System / Installation Support
